3D Printed Parts
A bundle with all the parts can be downloaded from this zip file.
Gripper Parts
| Item | Name | Quantity |
|---|---|---|
 |

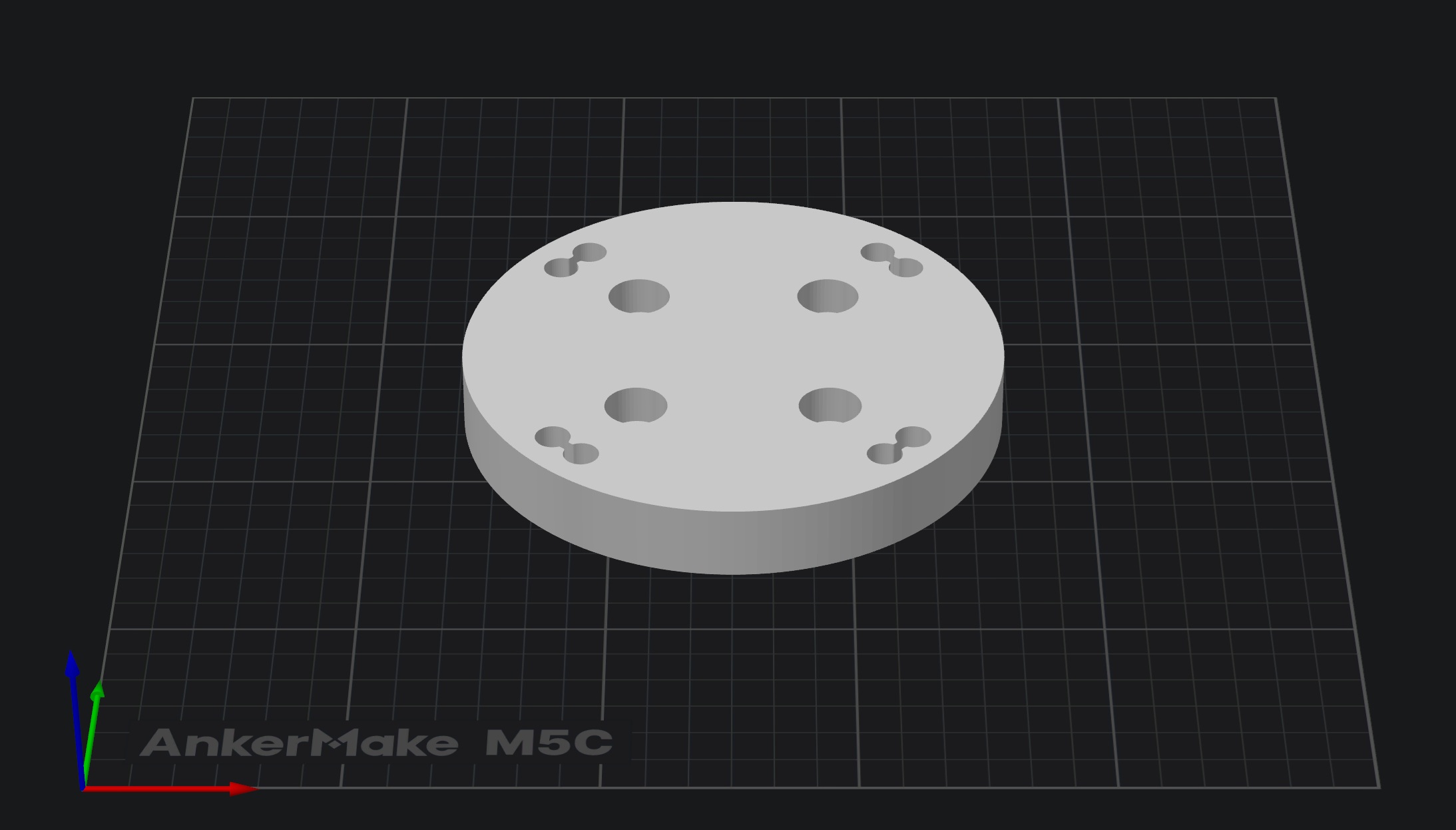

Base 1 | 1 |
 |

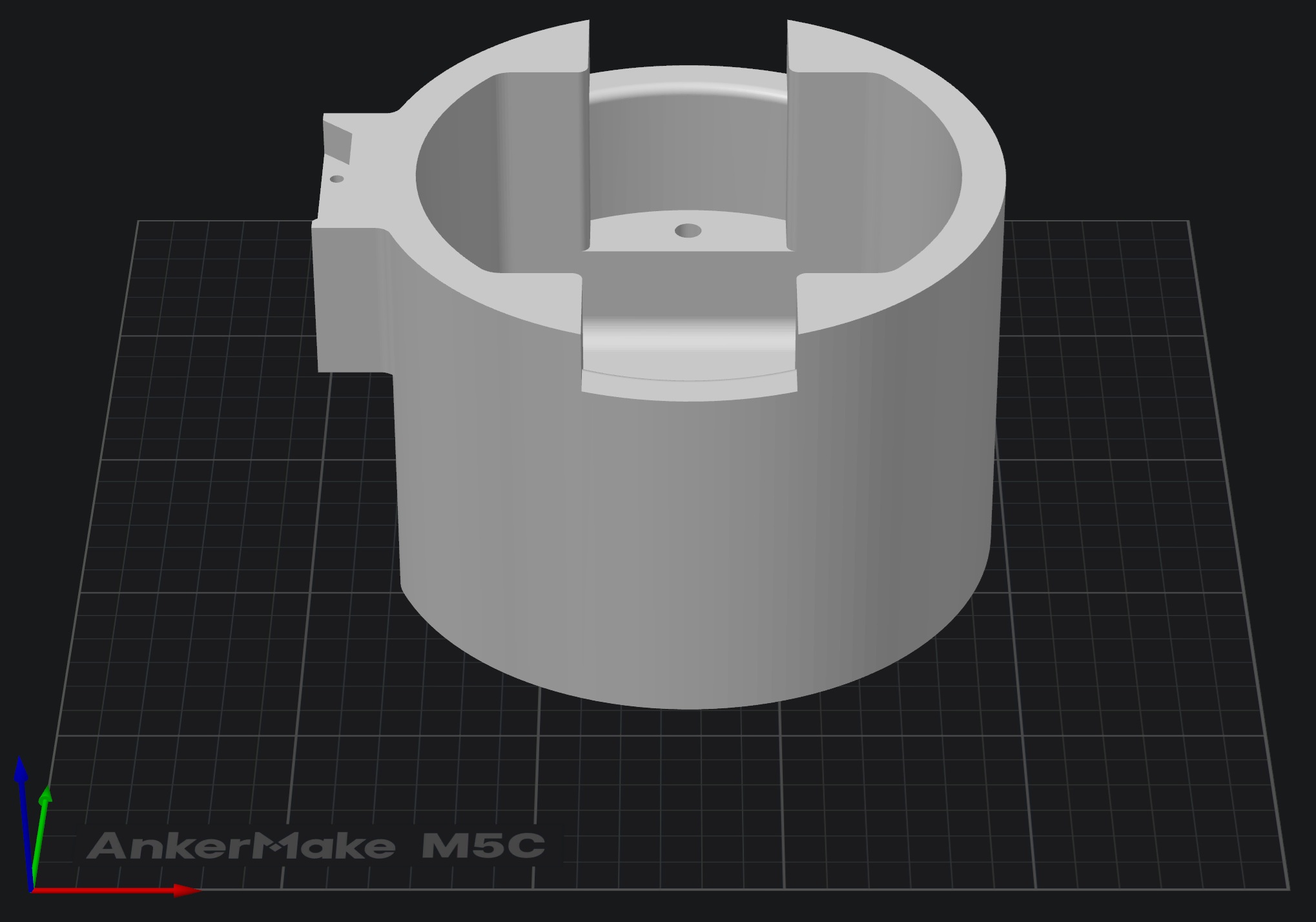

Base 2 | 1 |
 |

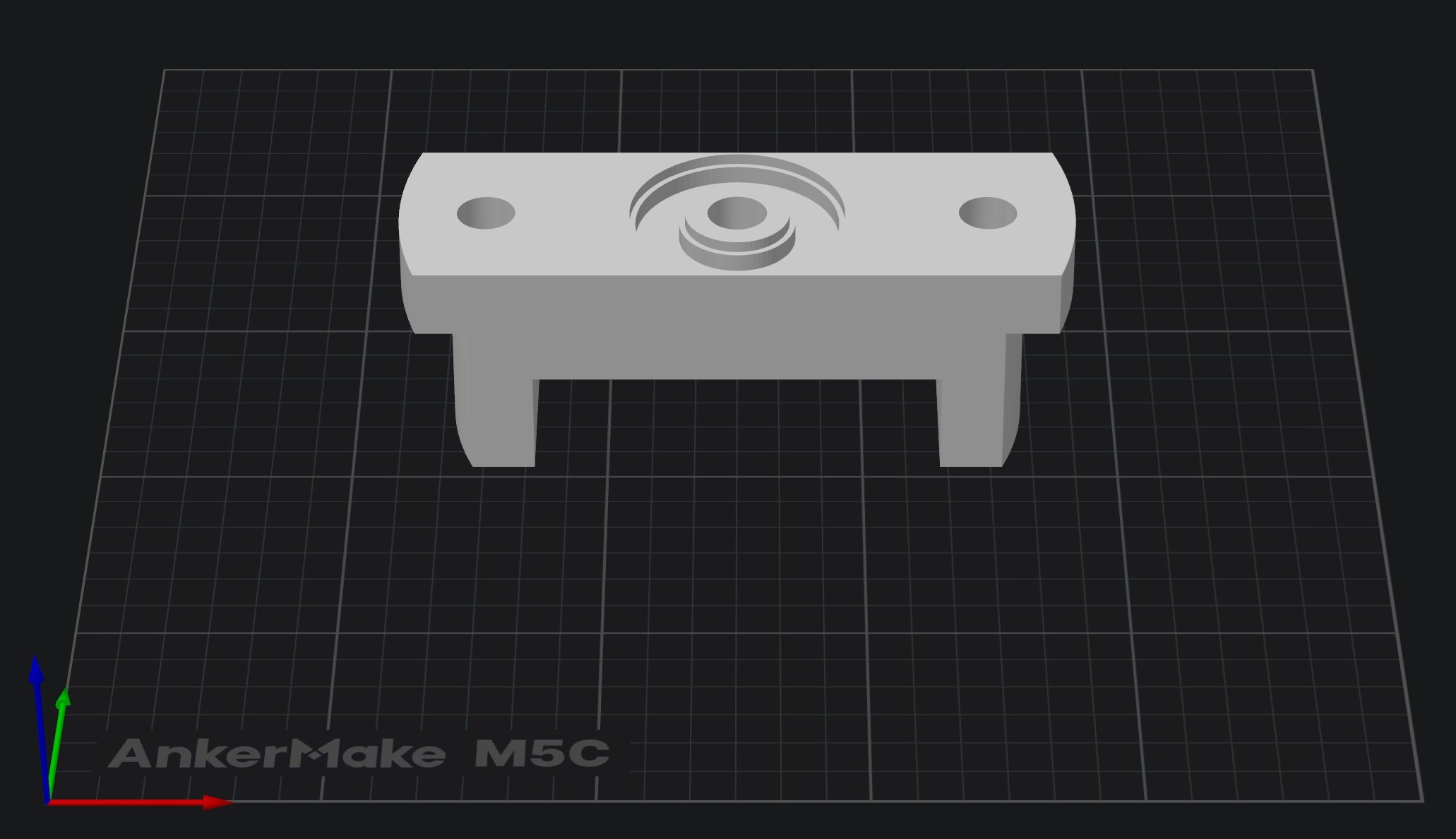

Axis Holder | 1 |
 |

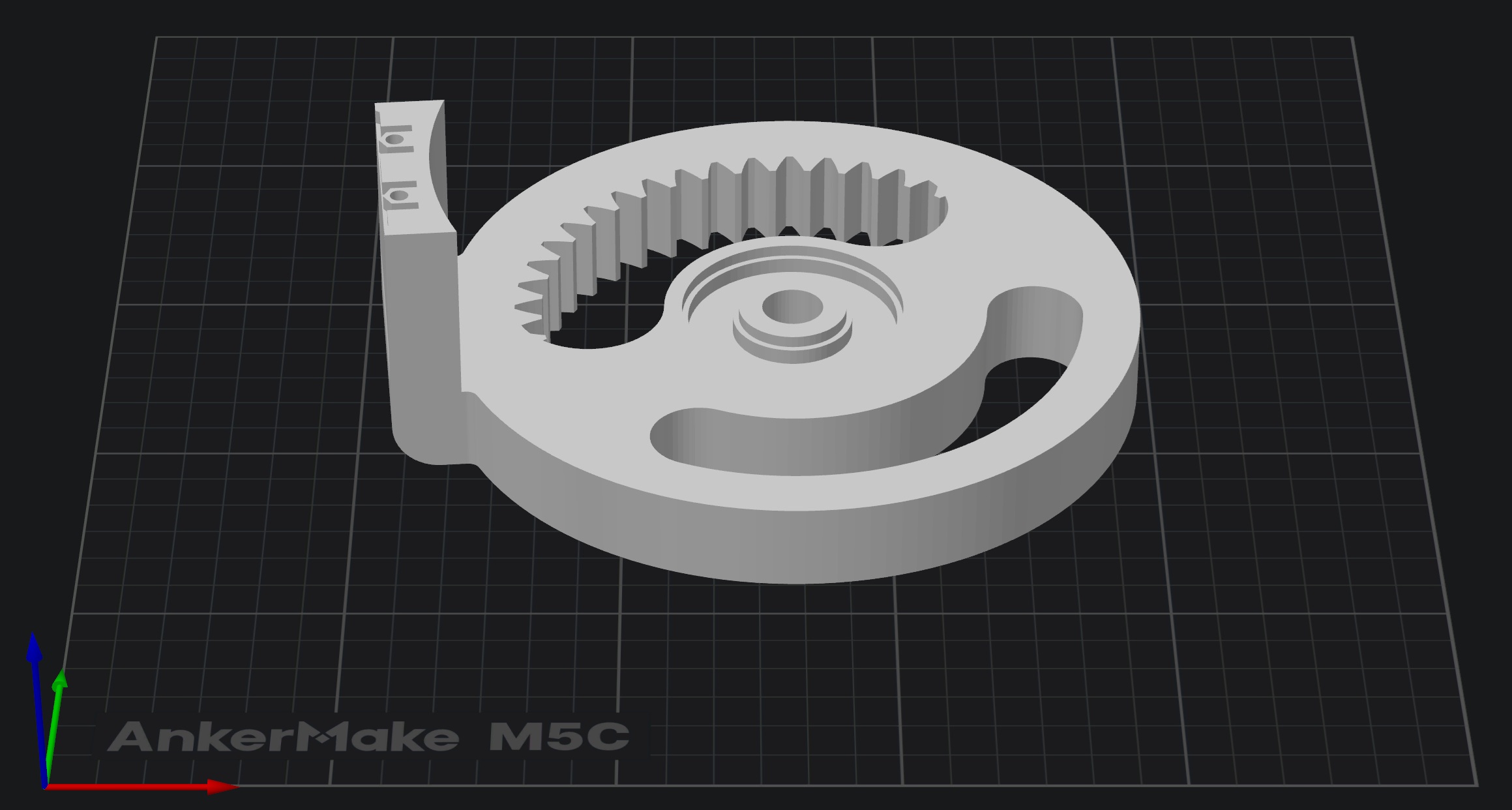

Rotating Platform 1 | 1 |
 |

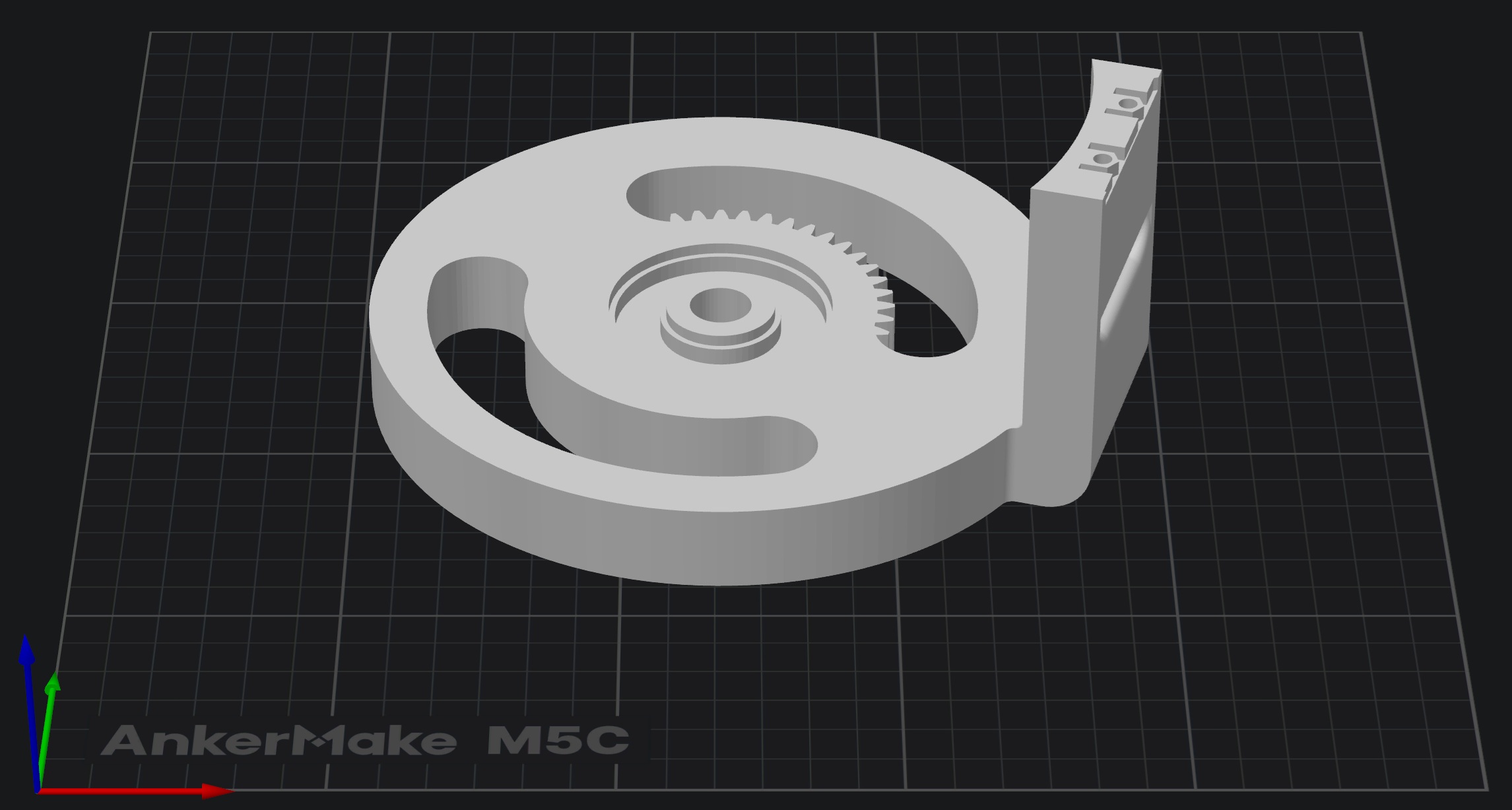

Rotating Platform 2 | 1 |
 |

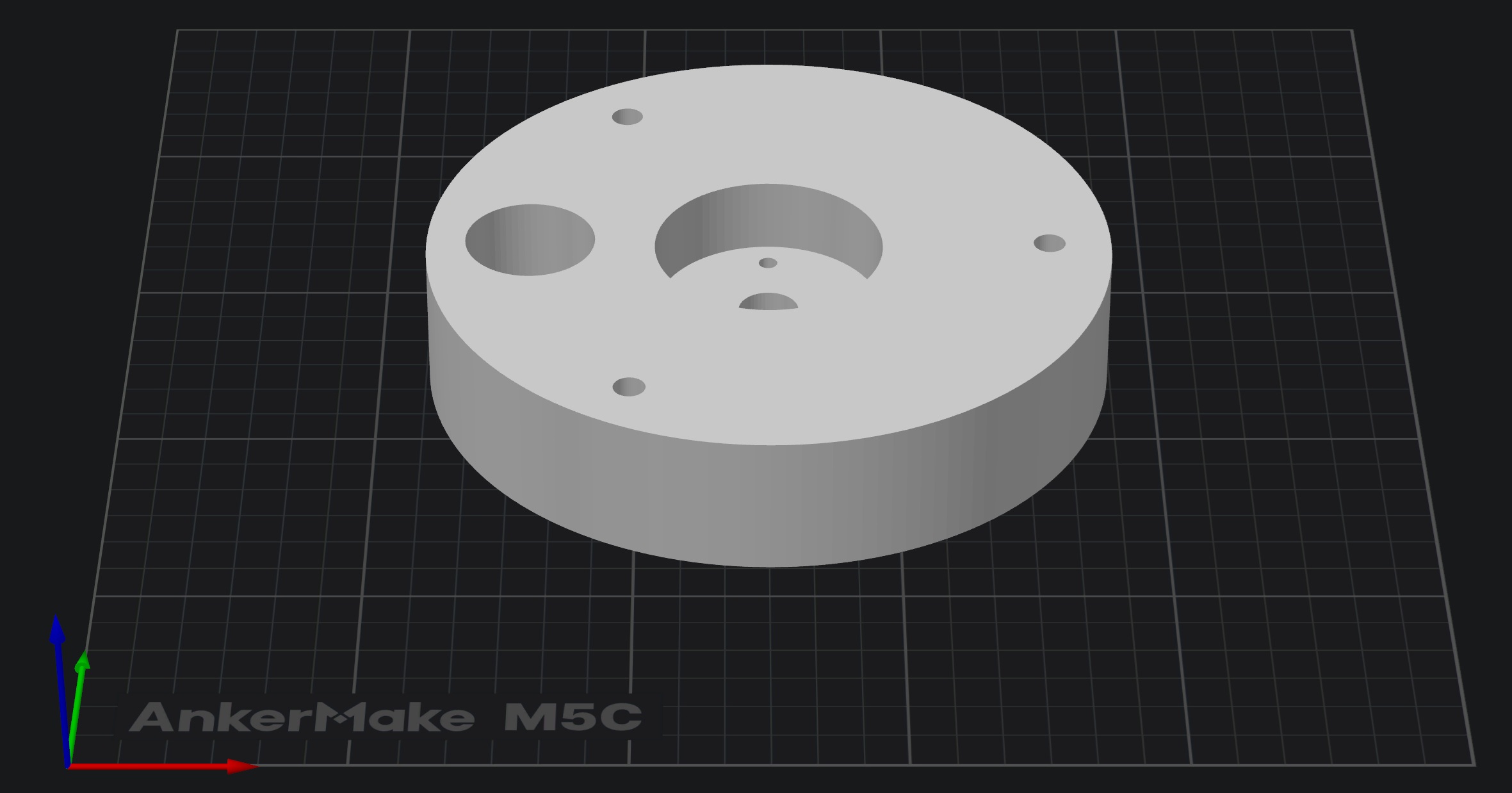

Top Axis Holder | 1 |
 |

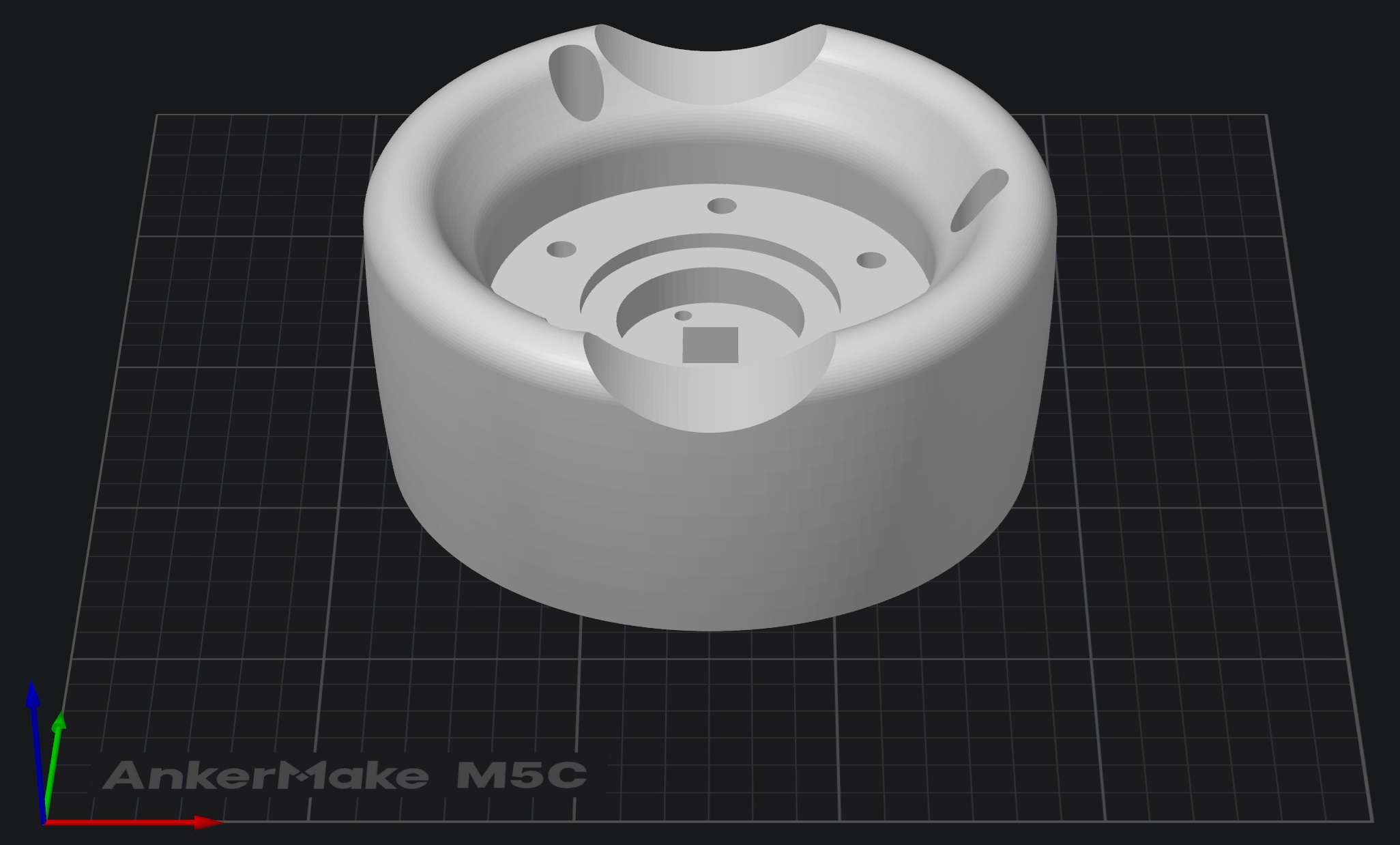

Cup | 1 |
 |

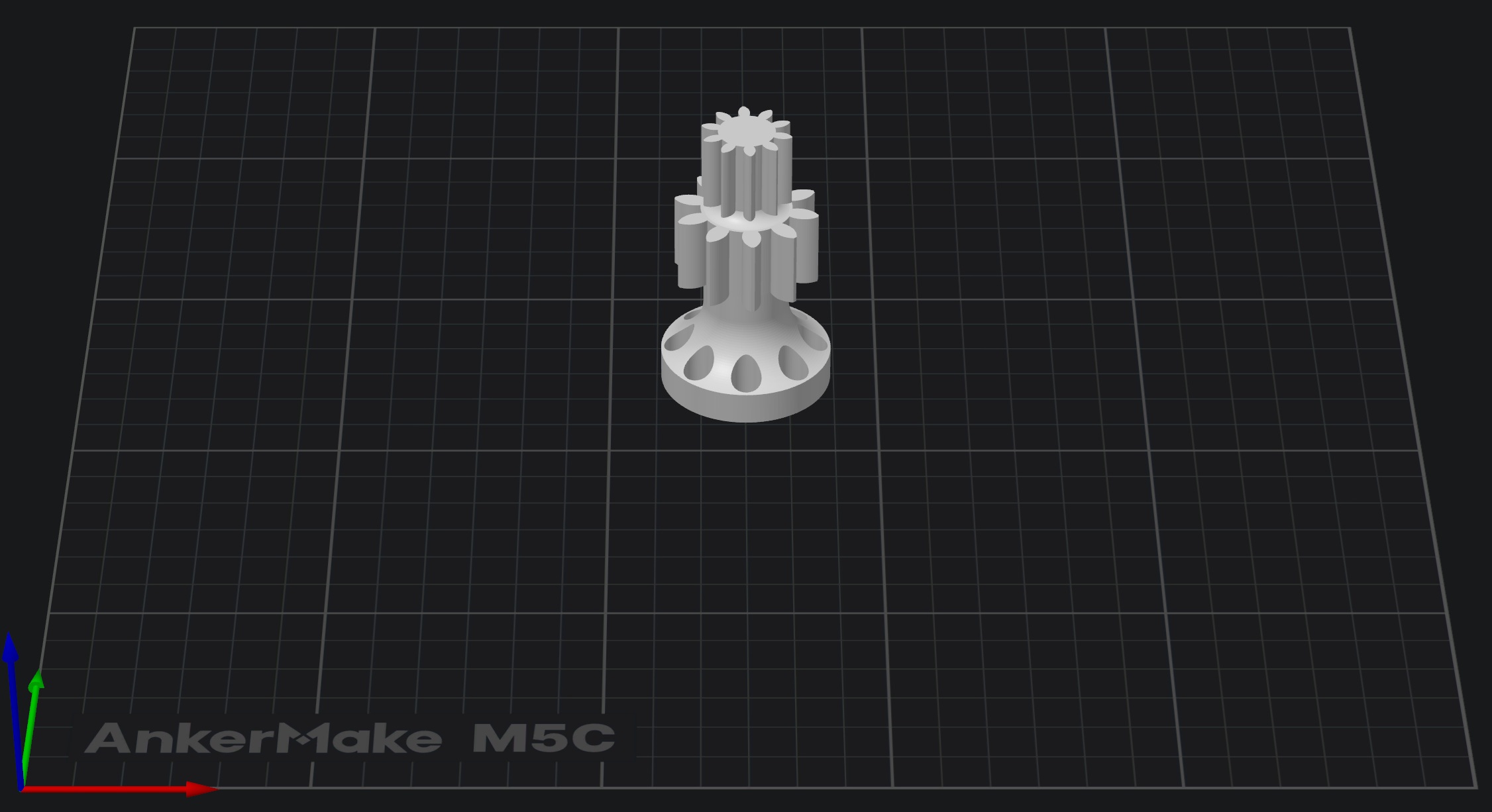

Gear | 1 |
 |

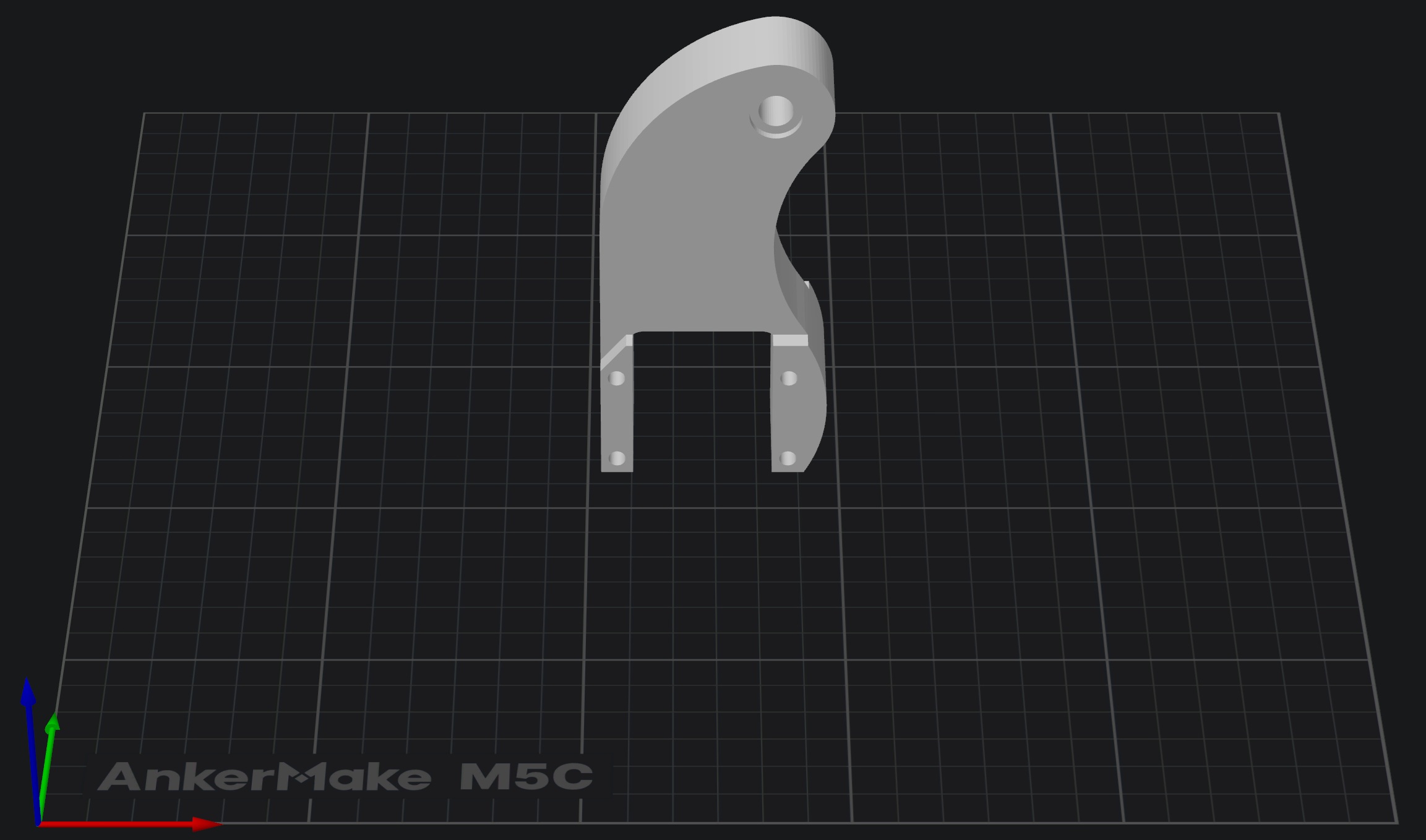

Link 0 | 3 |
 |

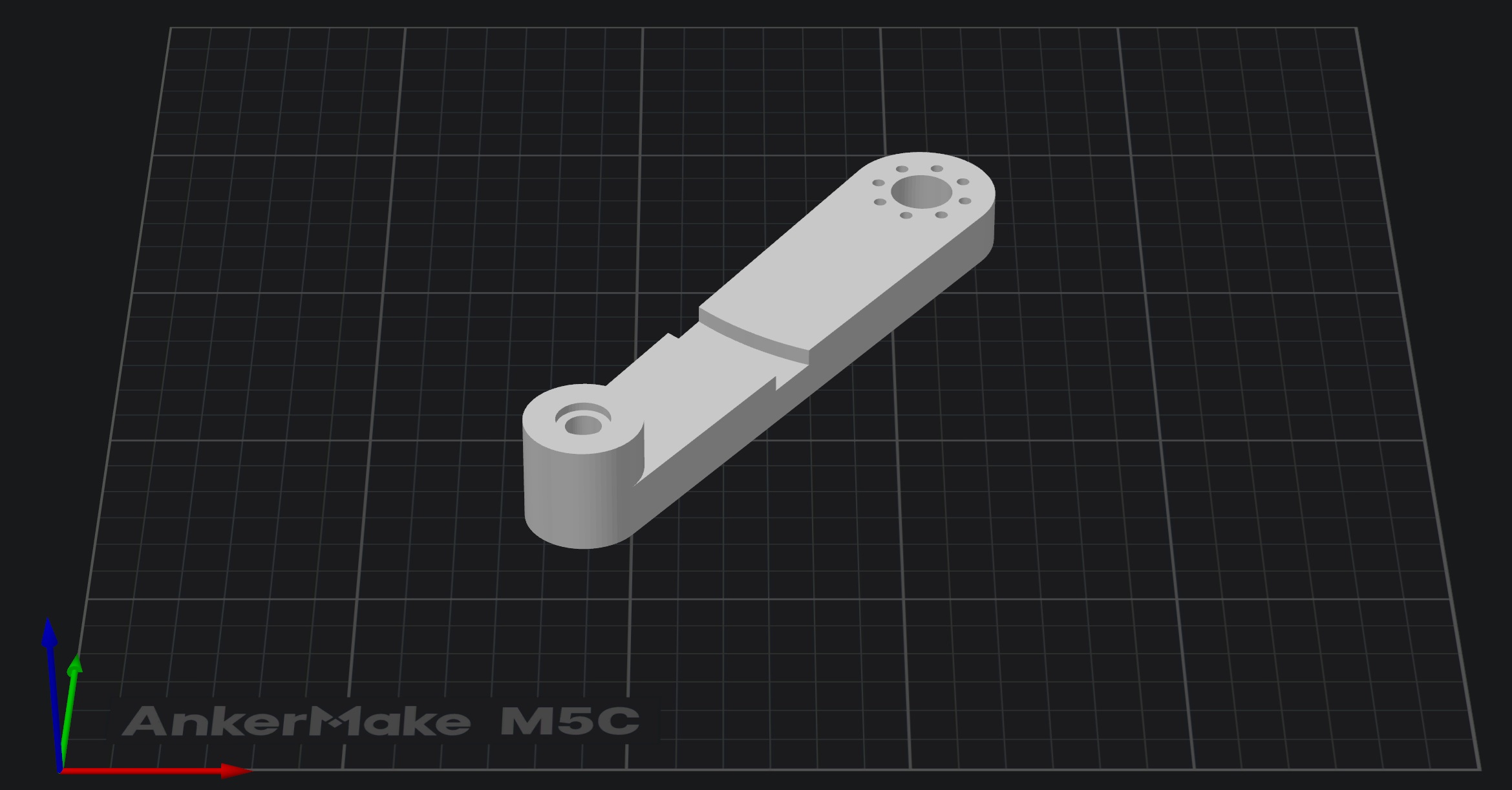

Link 1 | 6 |
 |

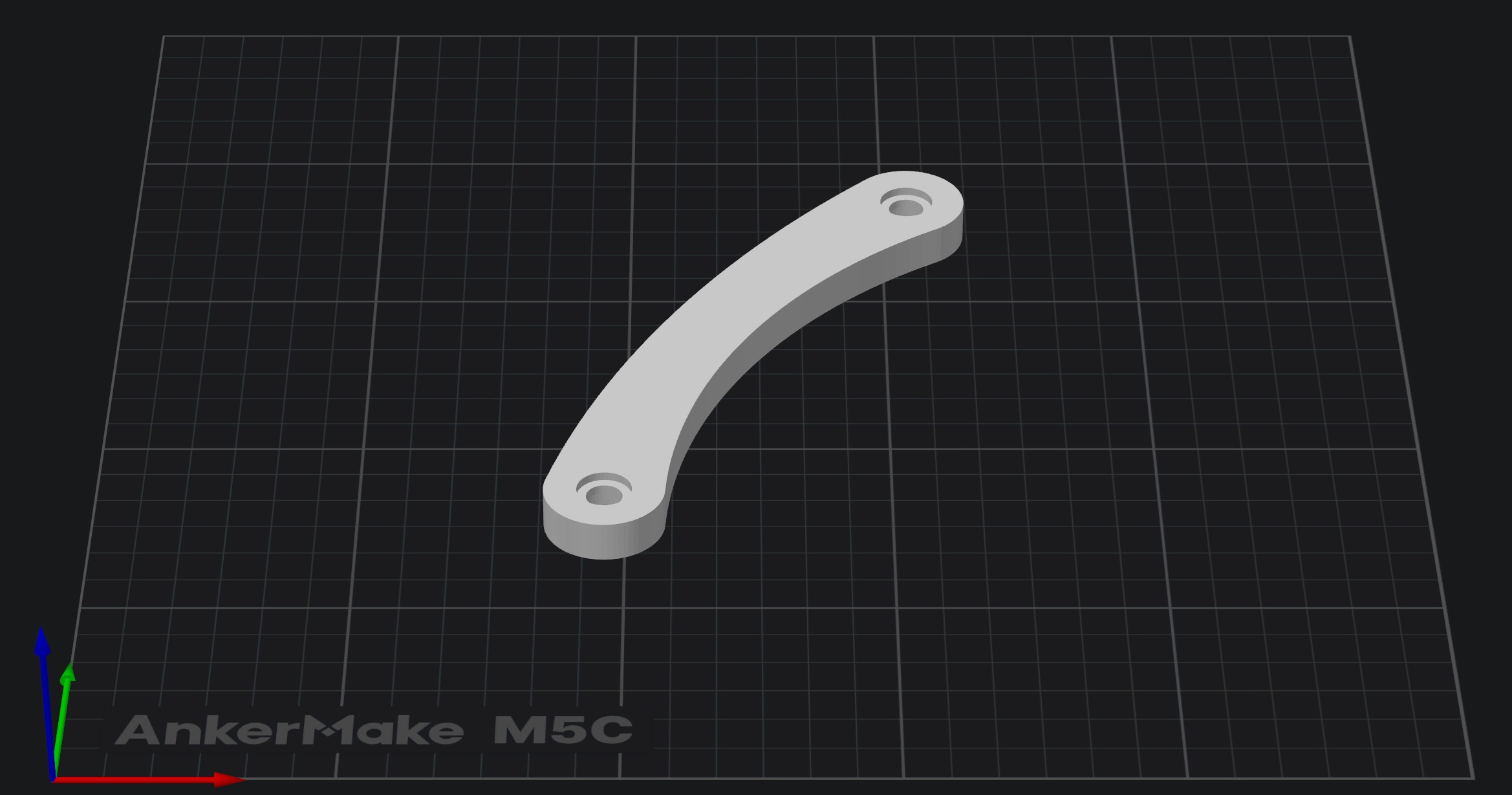

Link 2 Left | 3 |
 |

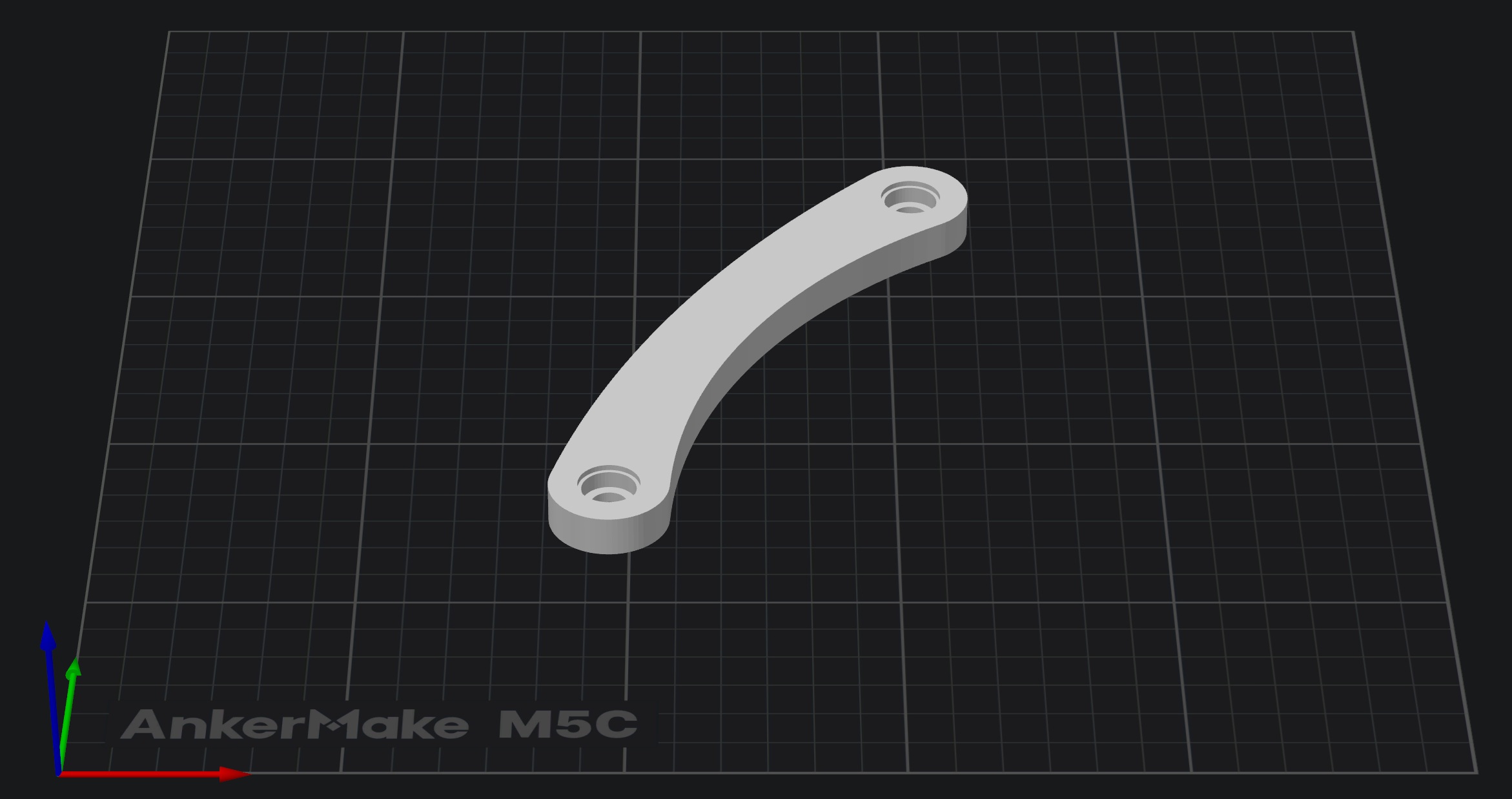

Link 2 Right | 3 |
 |

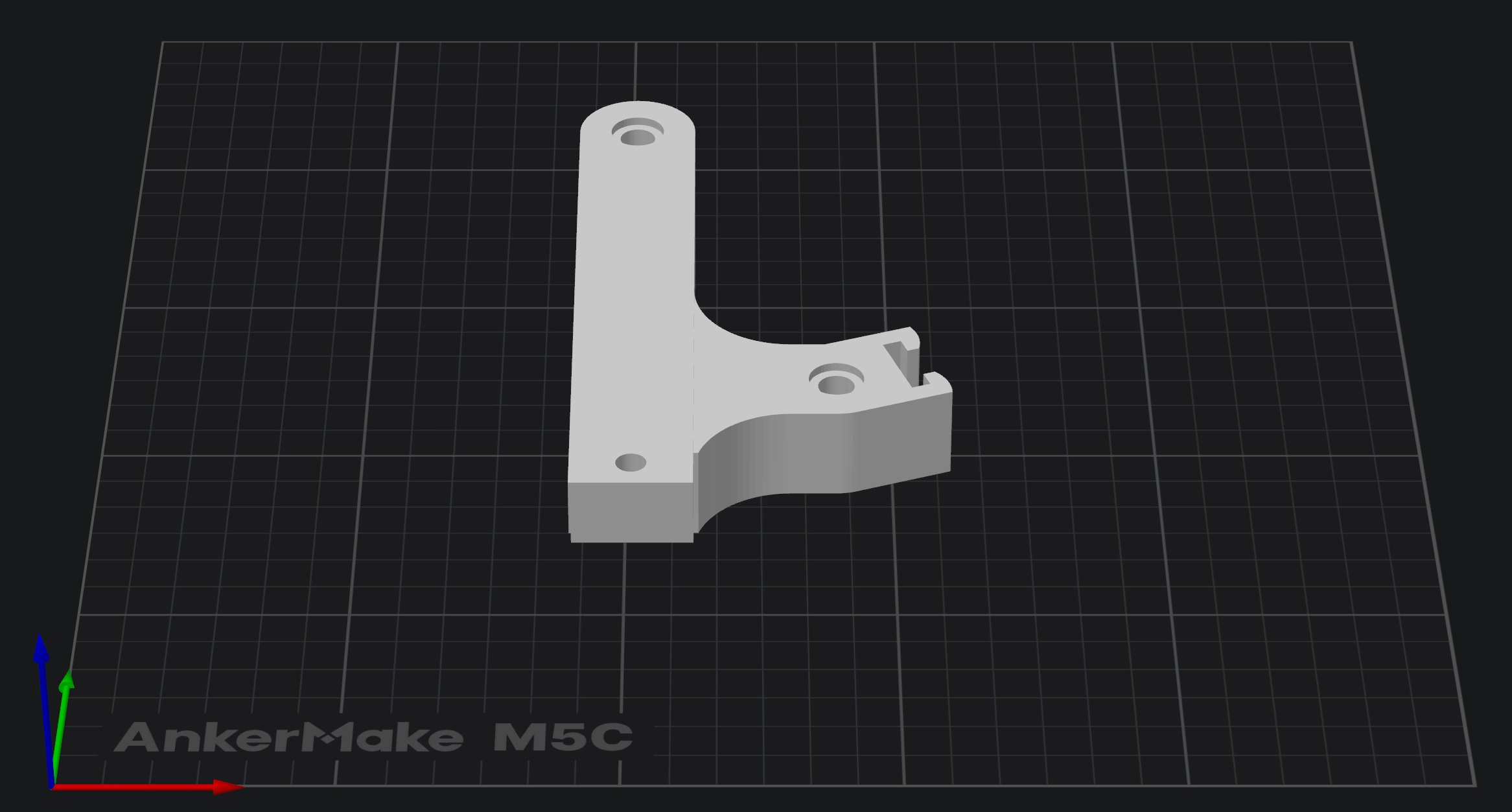

Link 3 | 3 |
 |

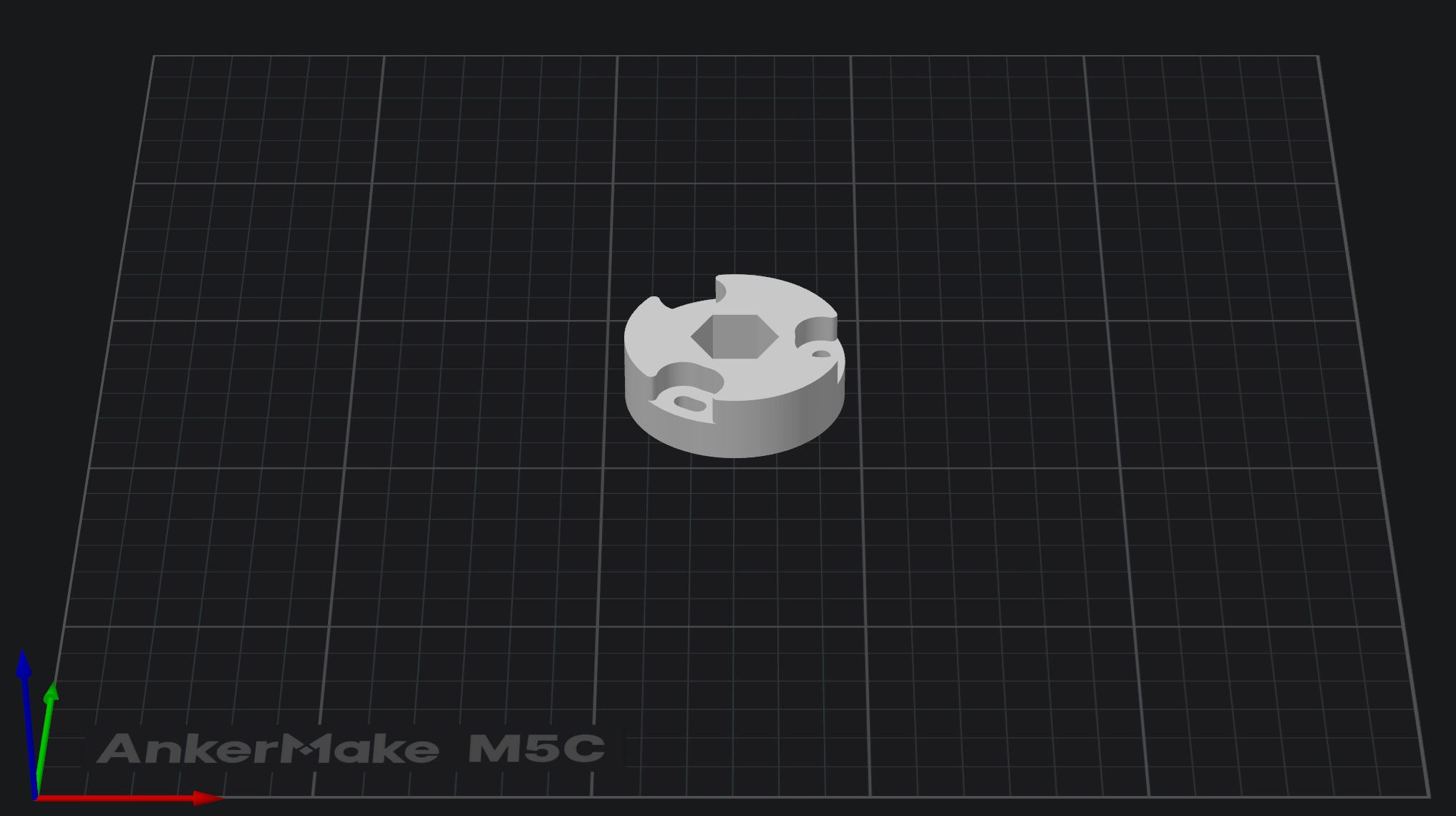

Axle Lock | 1 |
 |

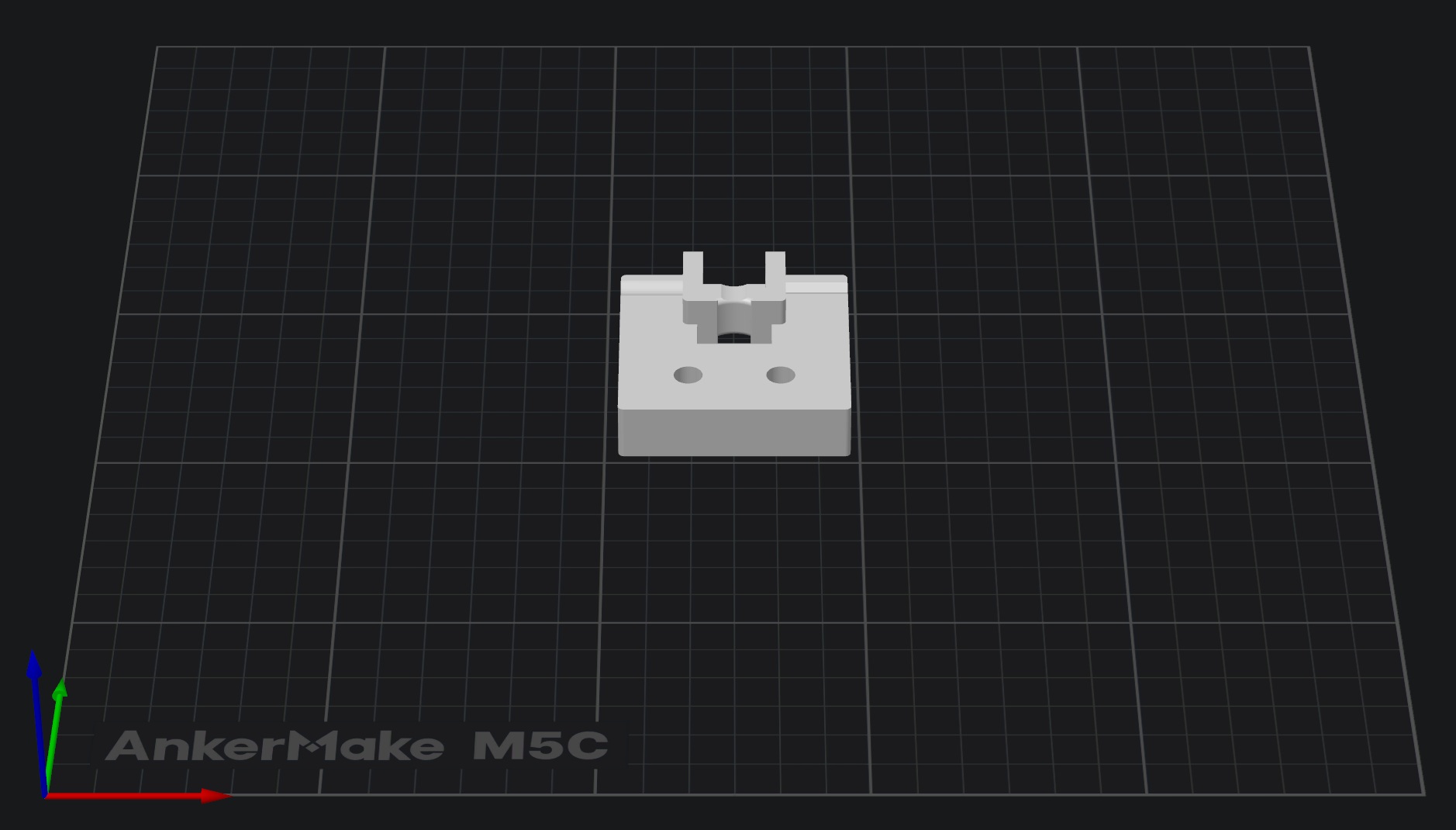

Fastener | 1 |
 |

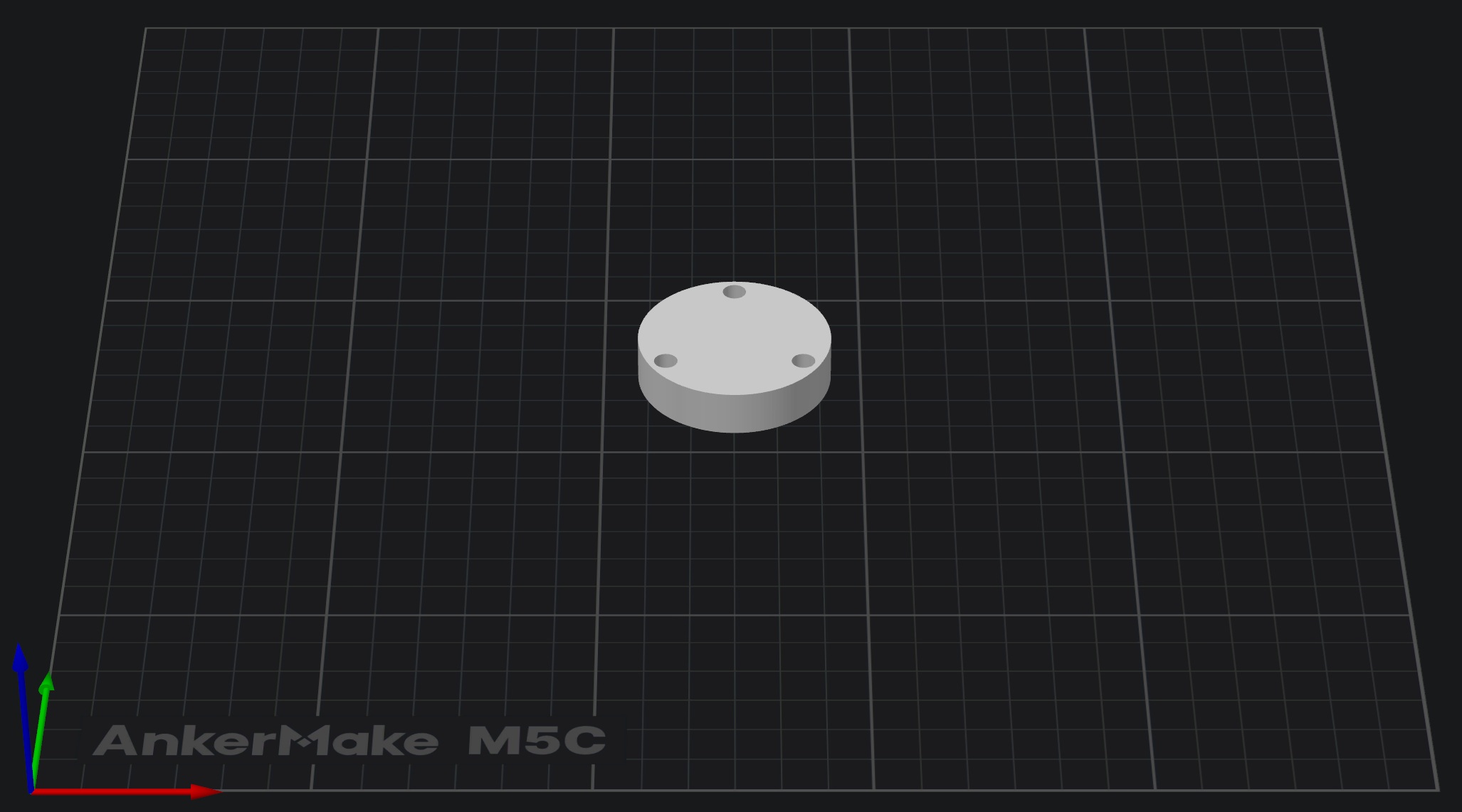

Filter | 1 |
 |

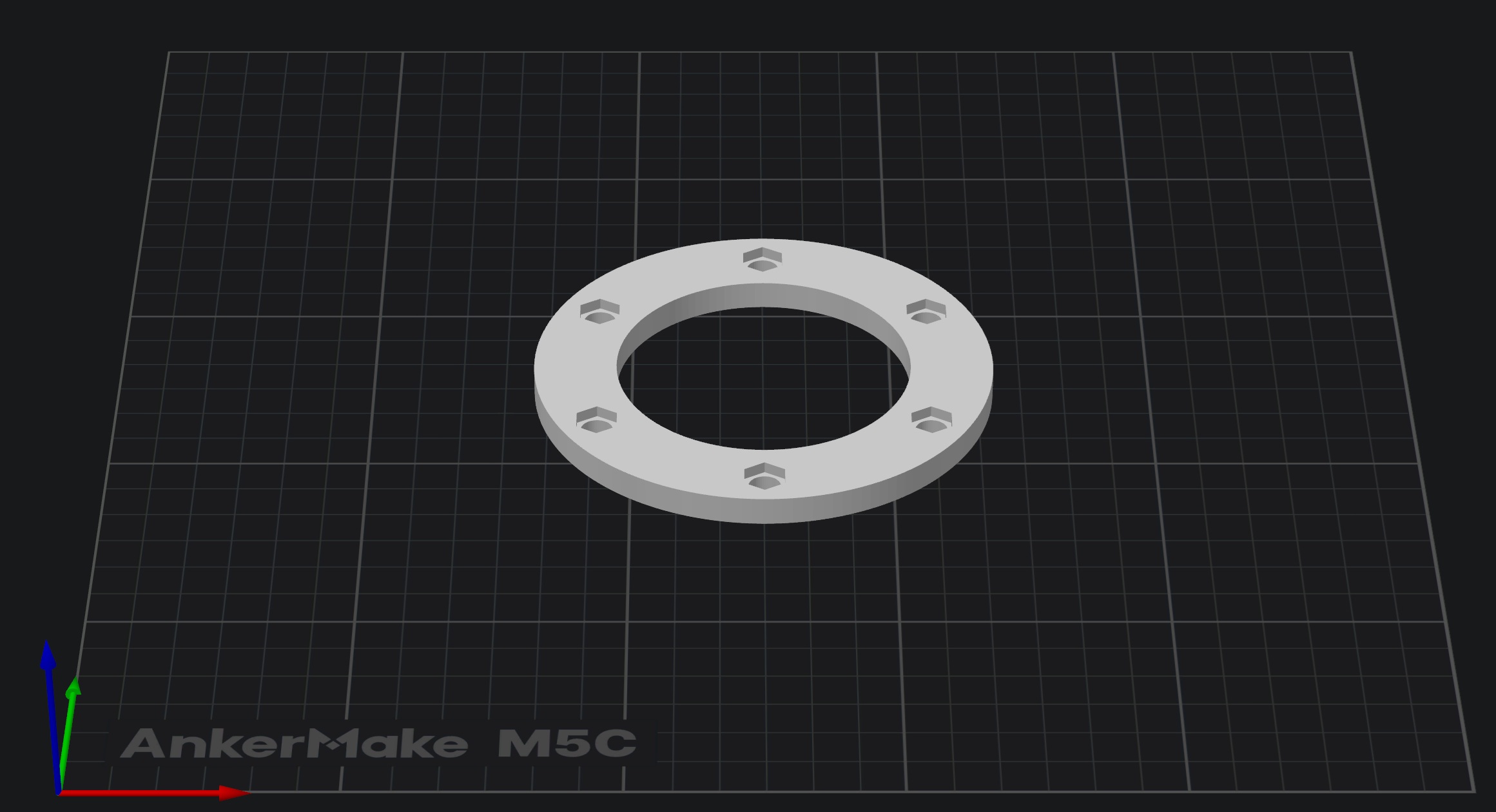

Jamming Holder | 1 |
 |

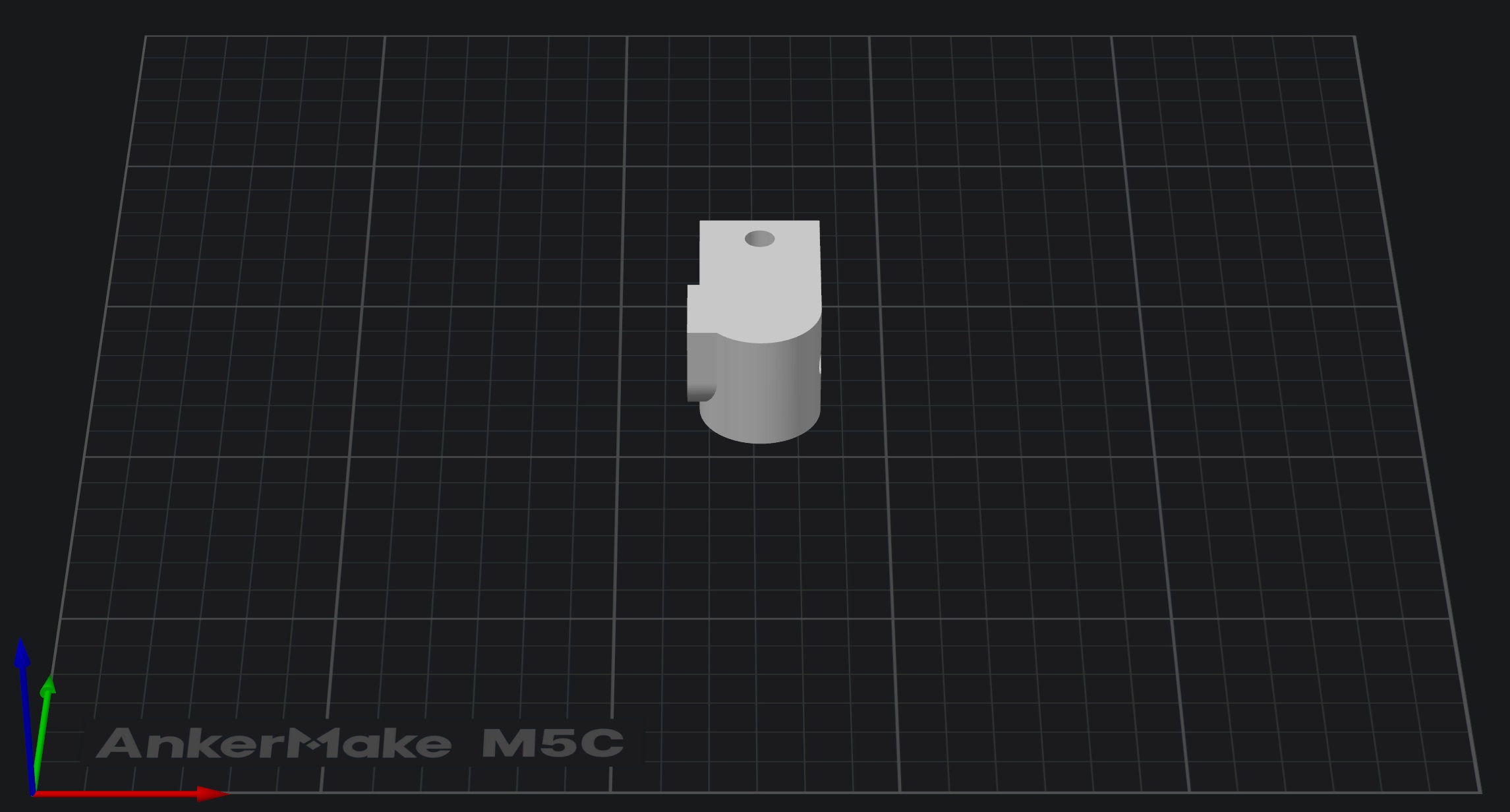

Pre Tip | 3 |
 |

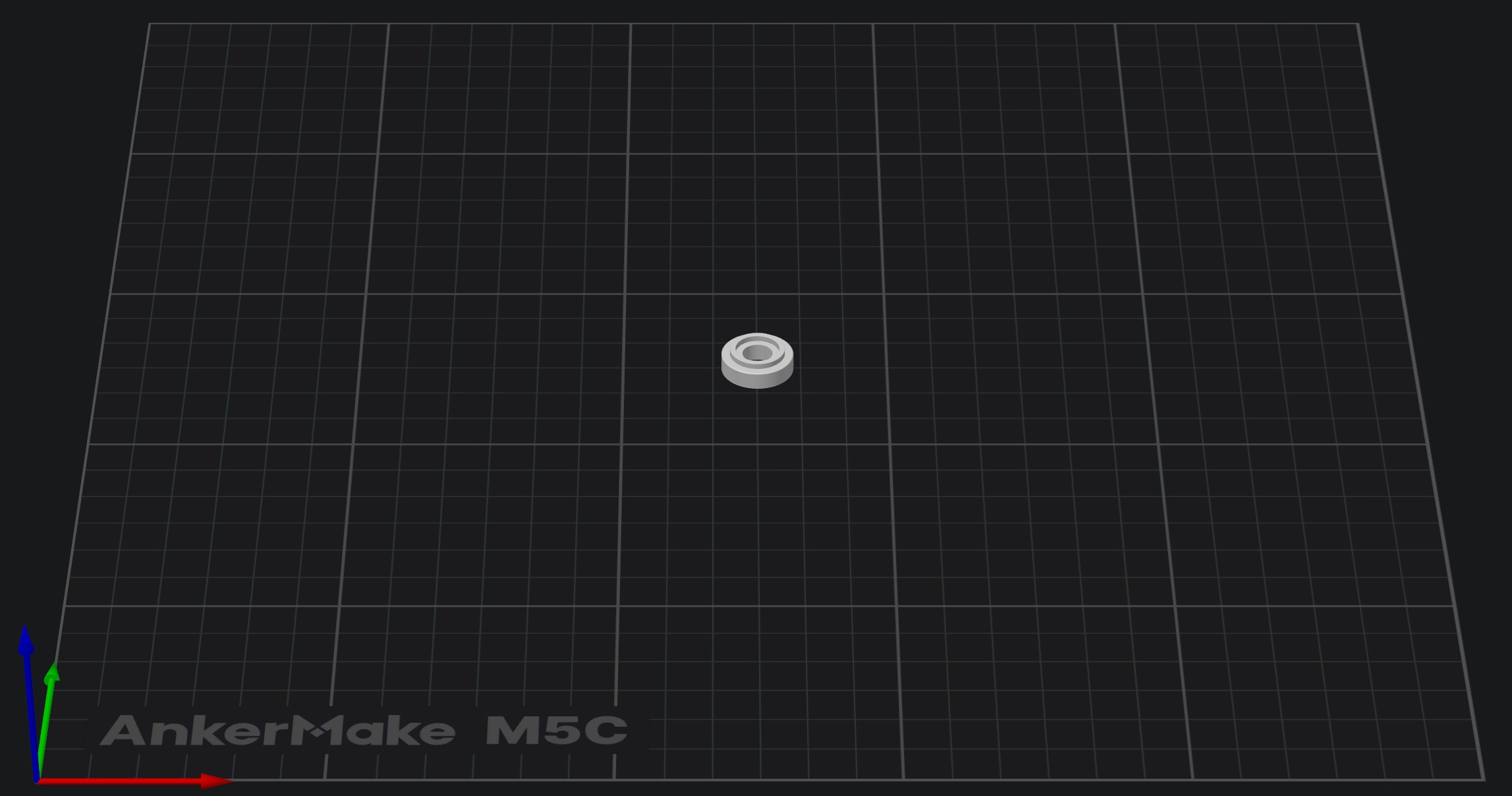

TIP1 Holder | 3 |
 |

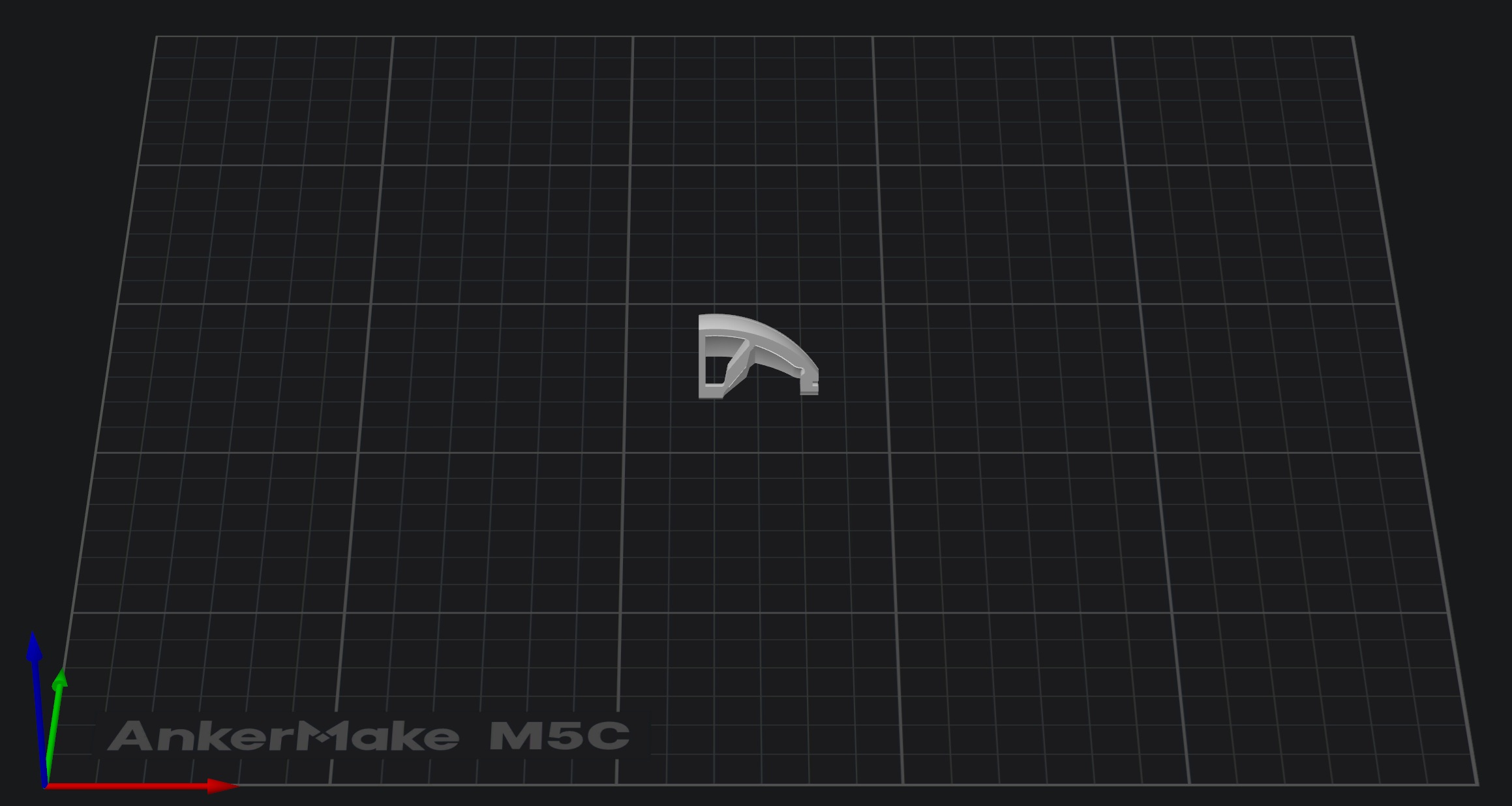

Tip 1 TPU | 12 |
 |

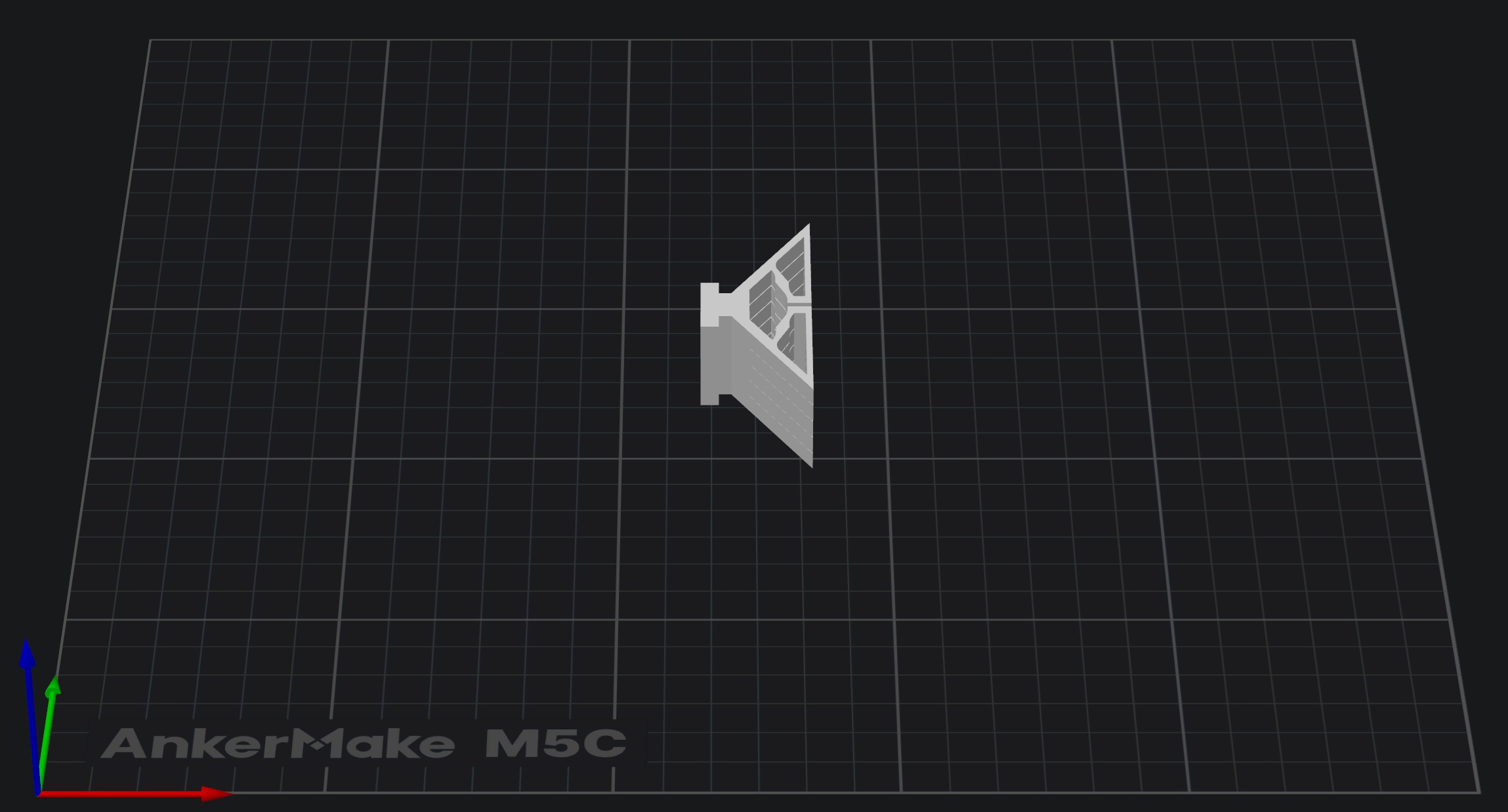

Tip 2 TPU | 3 |
Box Parts
| Item | Name | Quantity |
|---|---|---|
 |

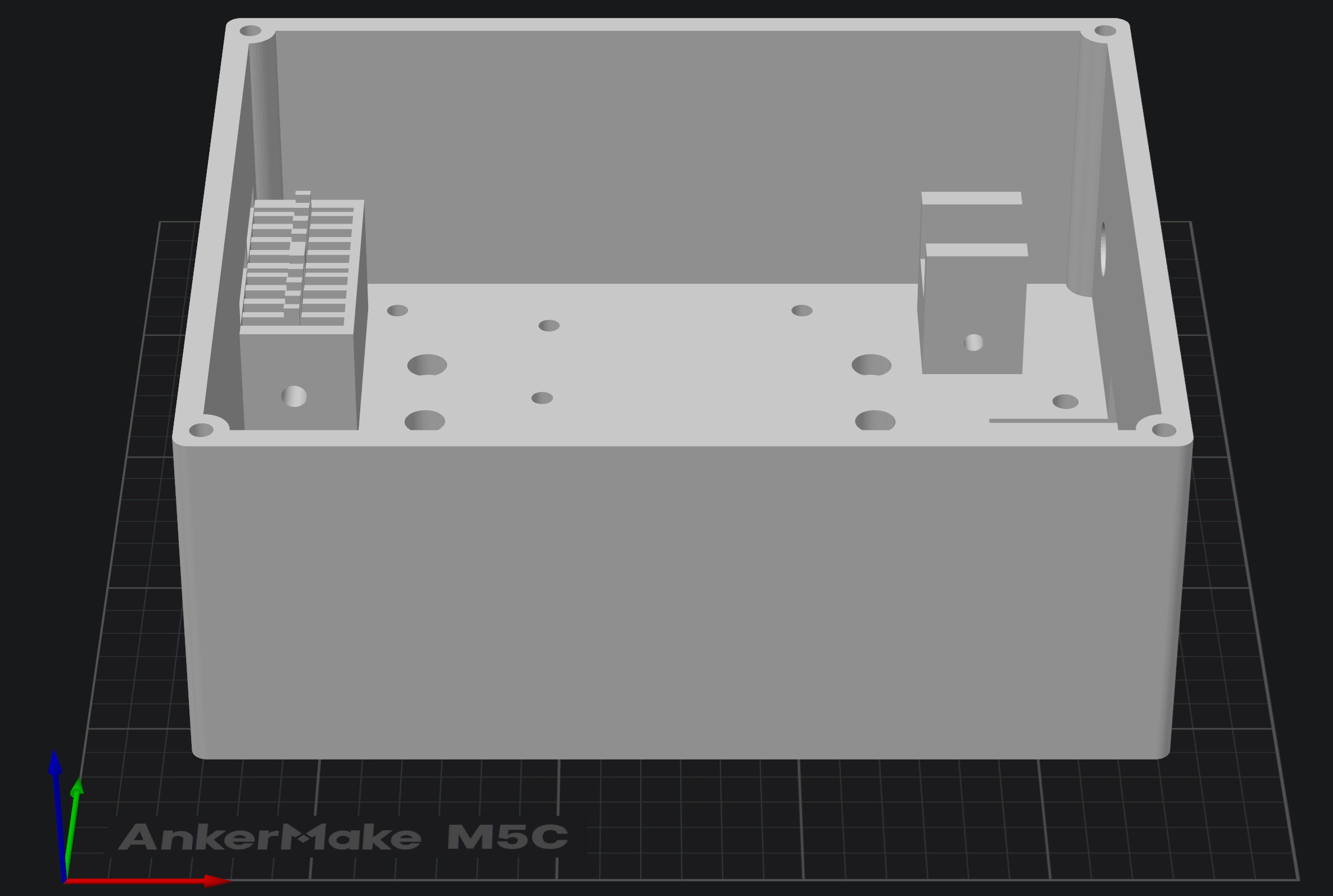

Box | 1 |
 |

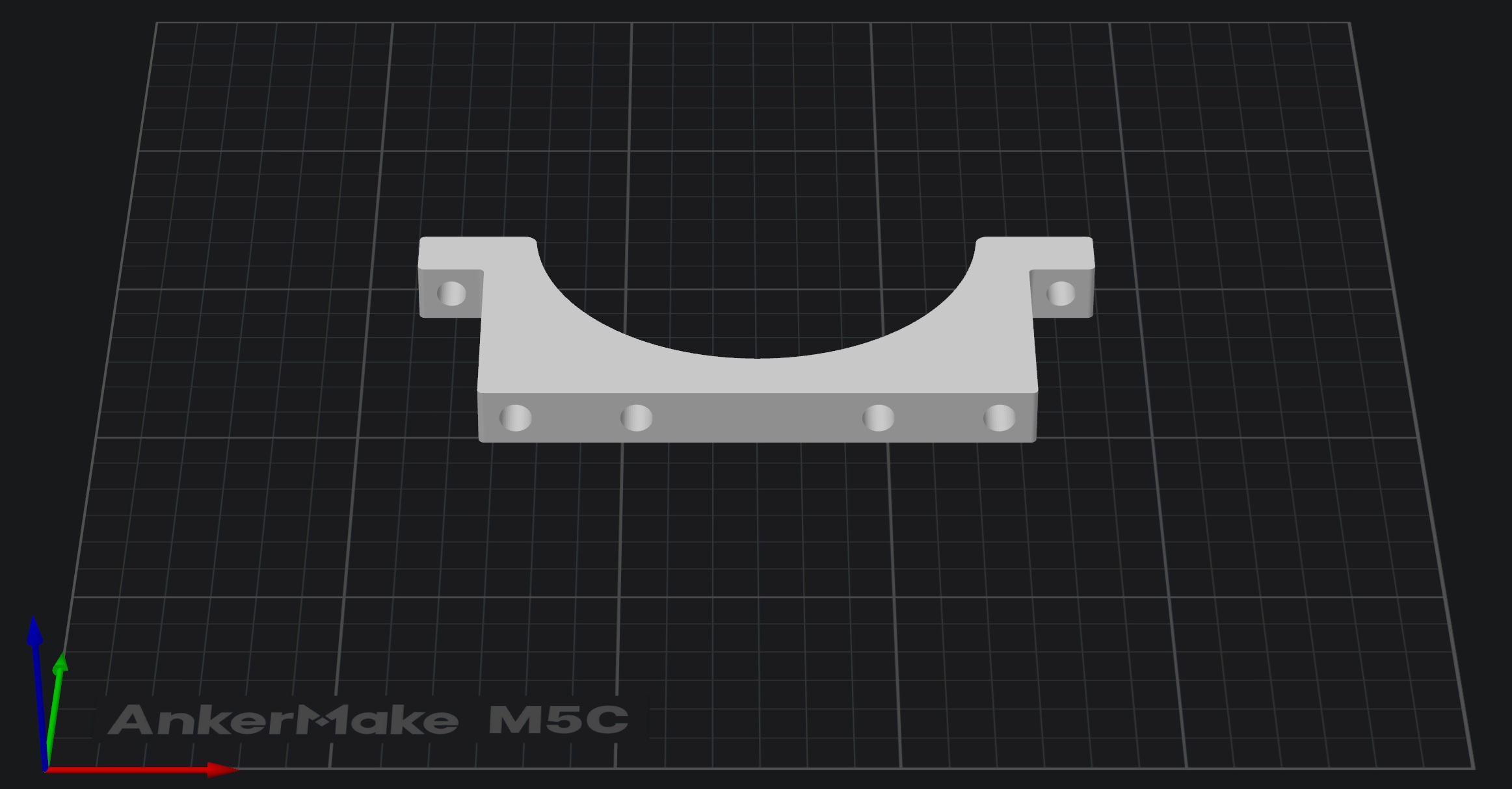

Box Holder | 2 |
 |

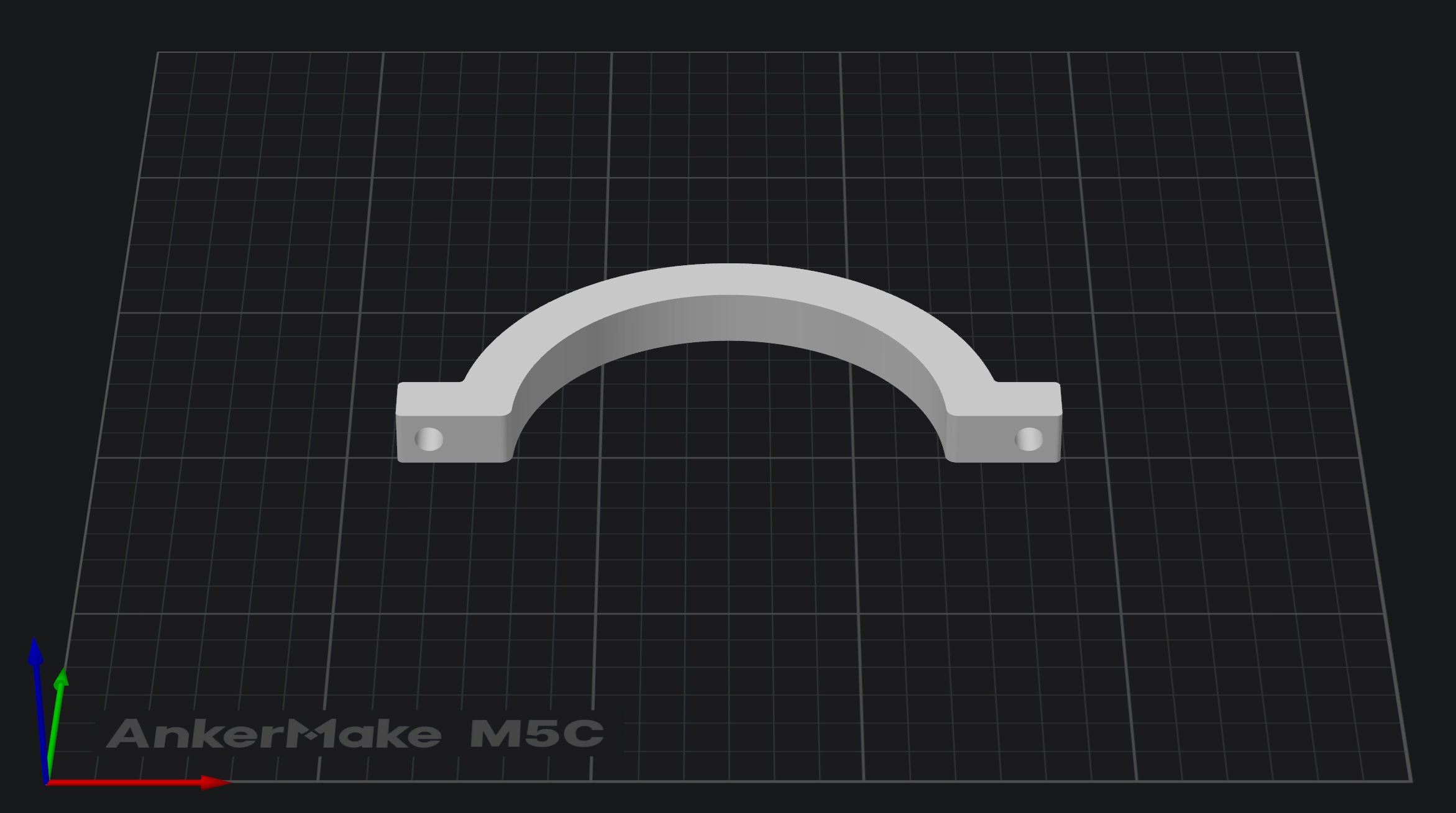

Box Holder Bot | 2 |
 |

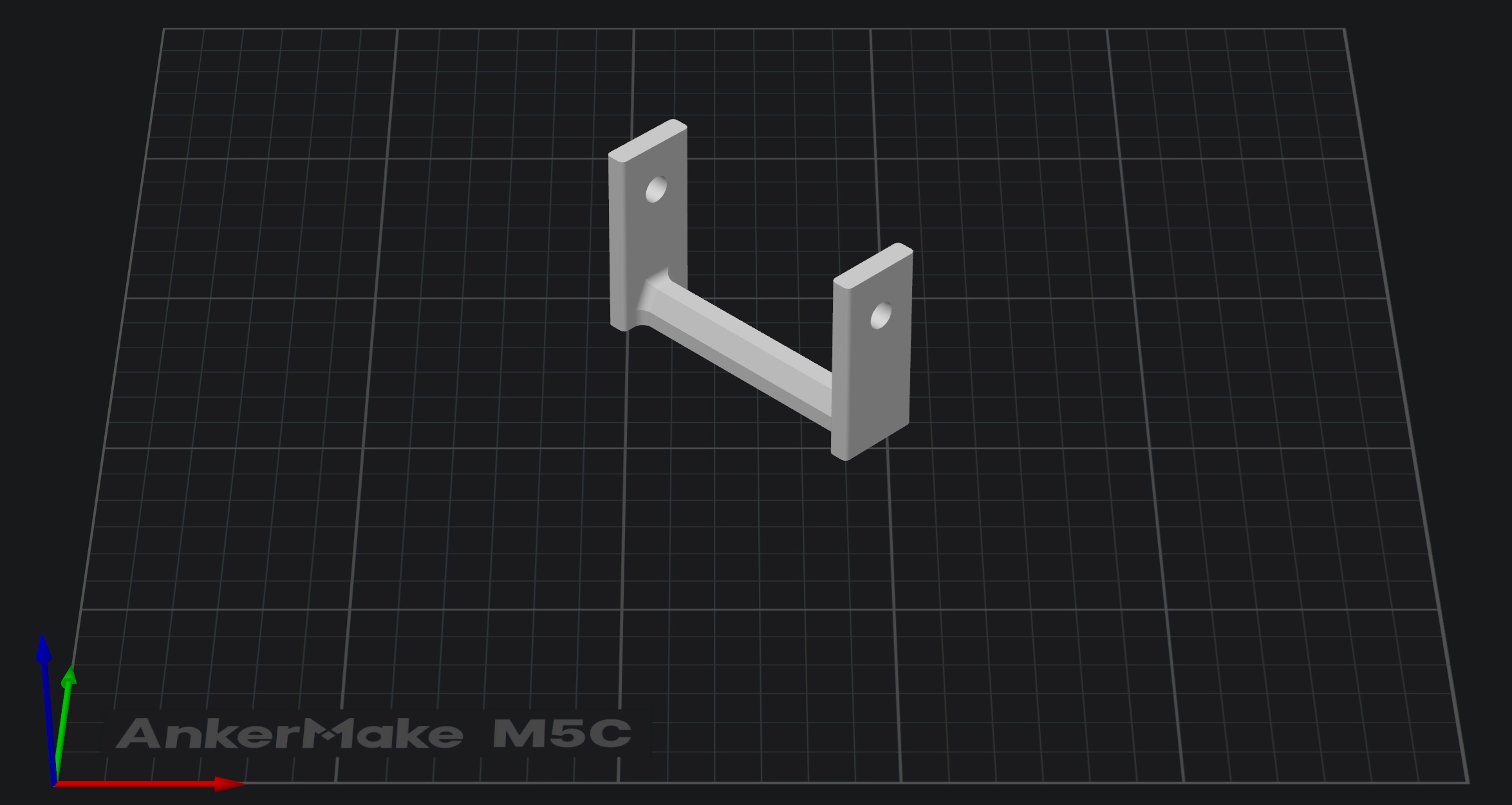

Electrical Components Holder | 1 |
 |

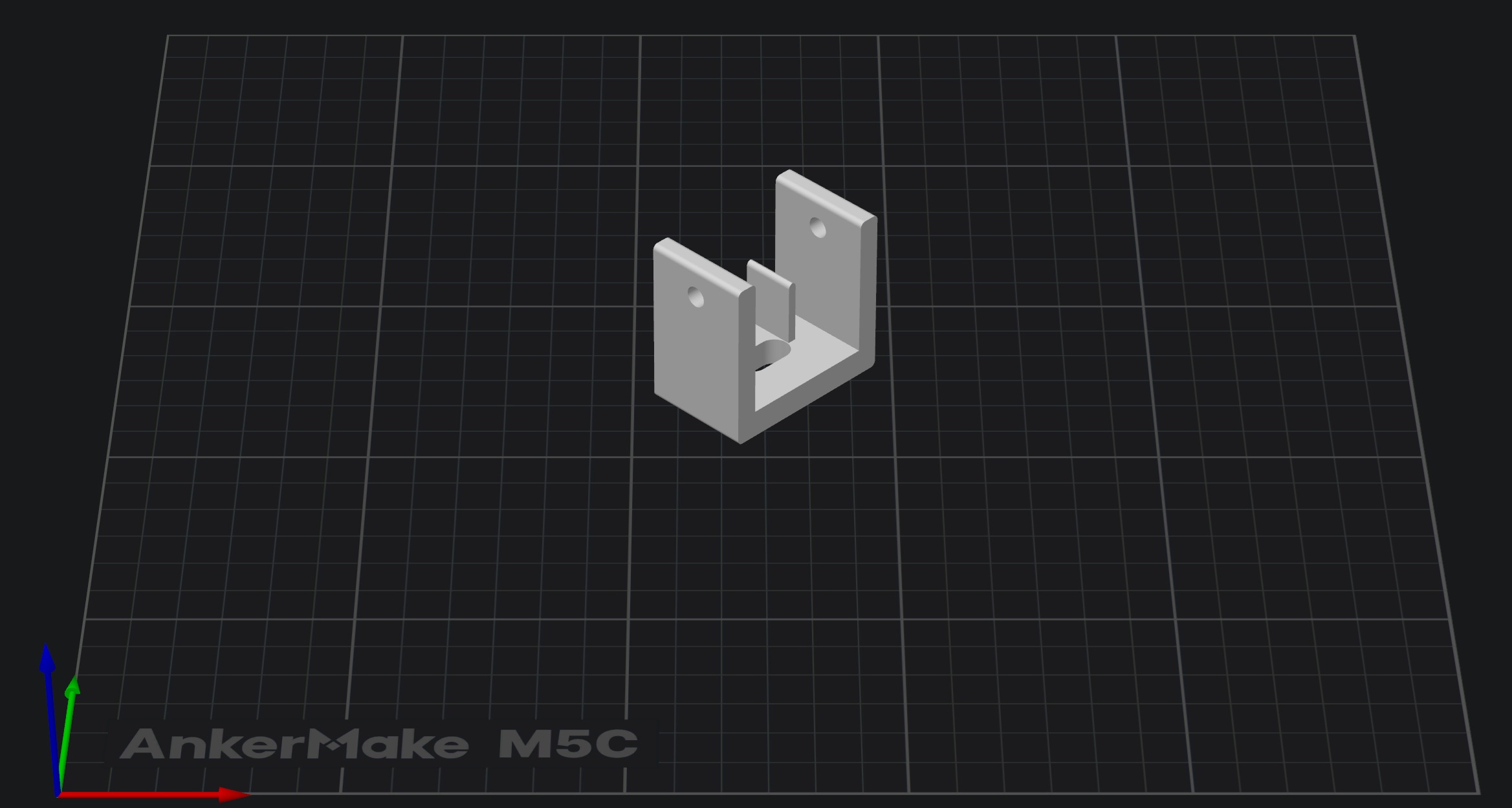

Power Supply Holder | 1 |
 |

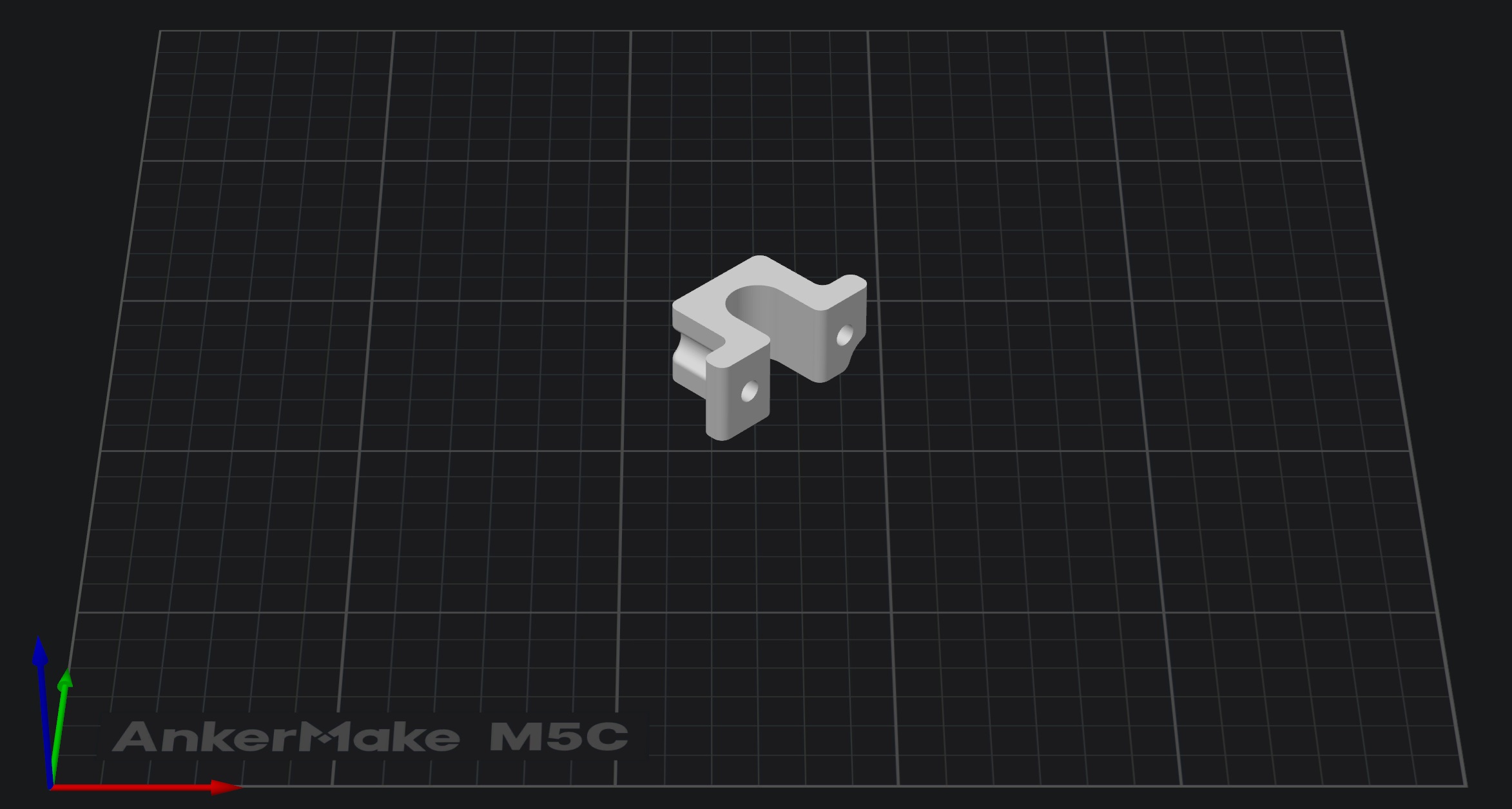

Tube Holder | 1 |
 |

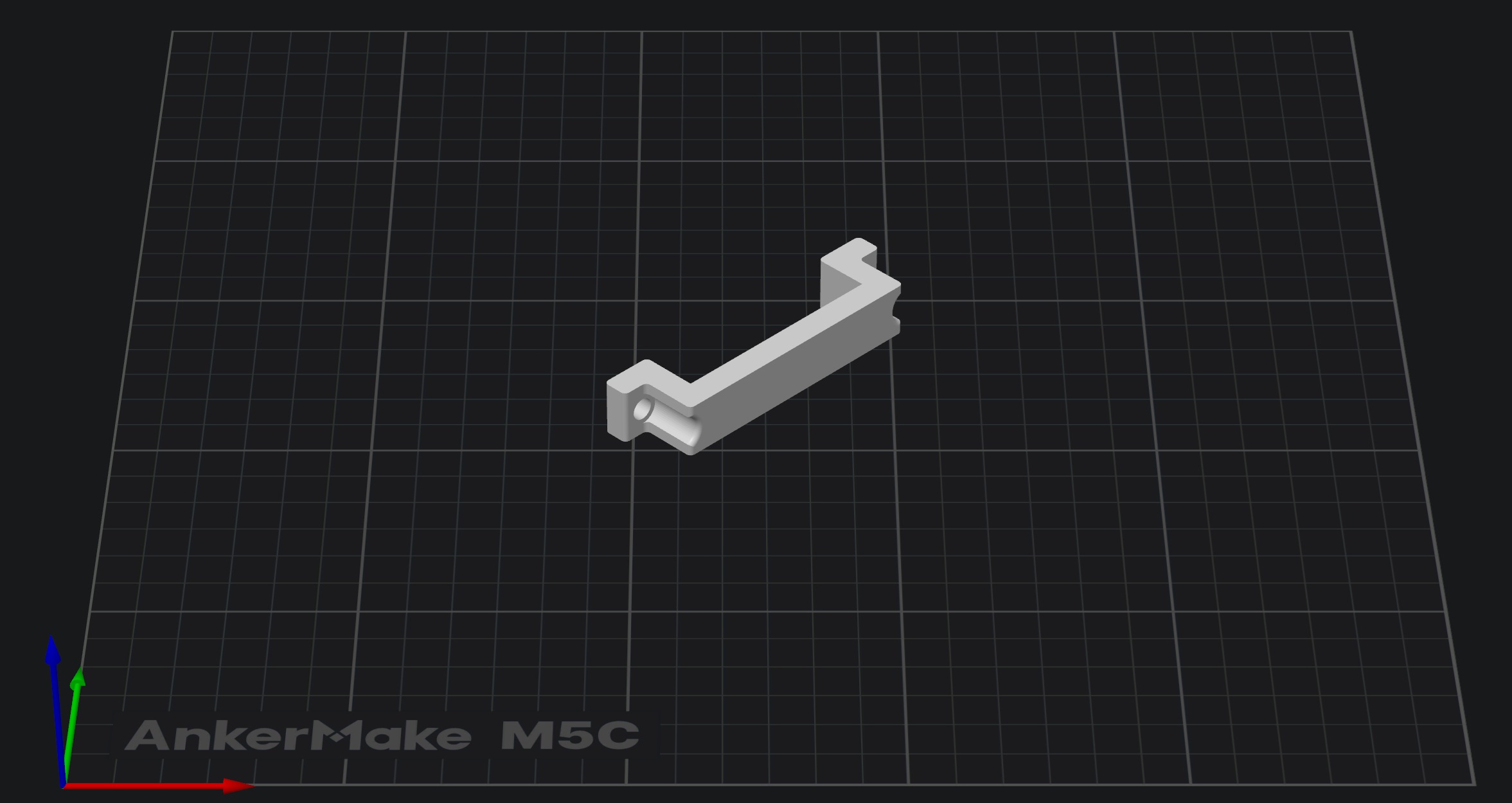

USB Holder | 1 |
Additional Parts
| Item | Name | Quantity |
|---|---|---|
 |

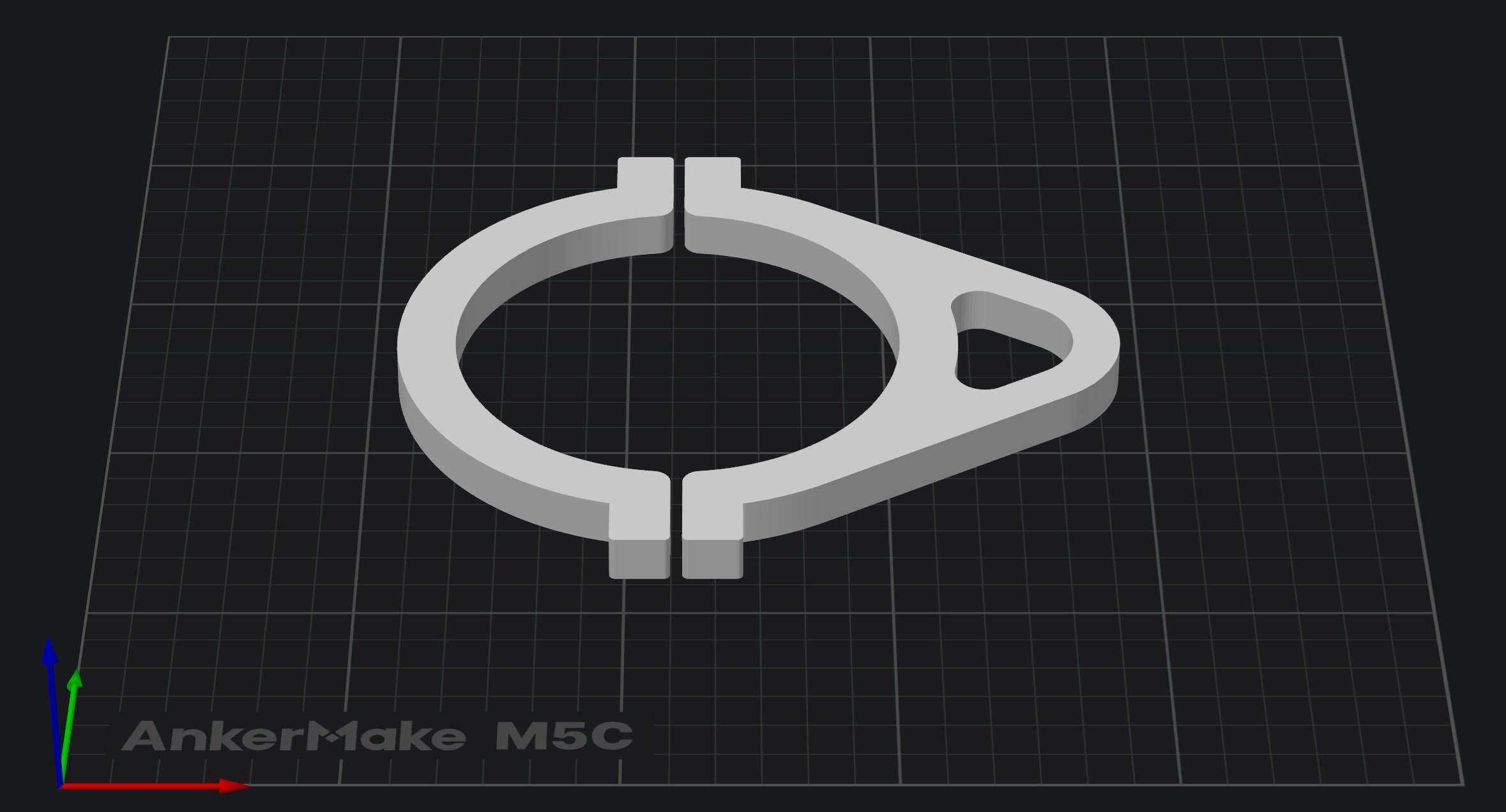

Robot UR5 Cable Holder | 1 |
 |

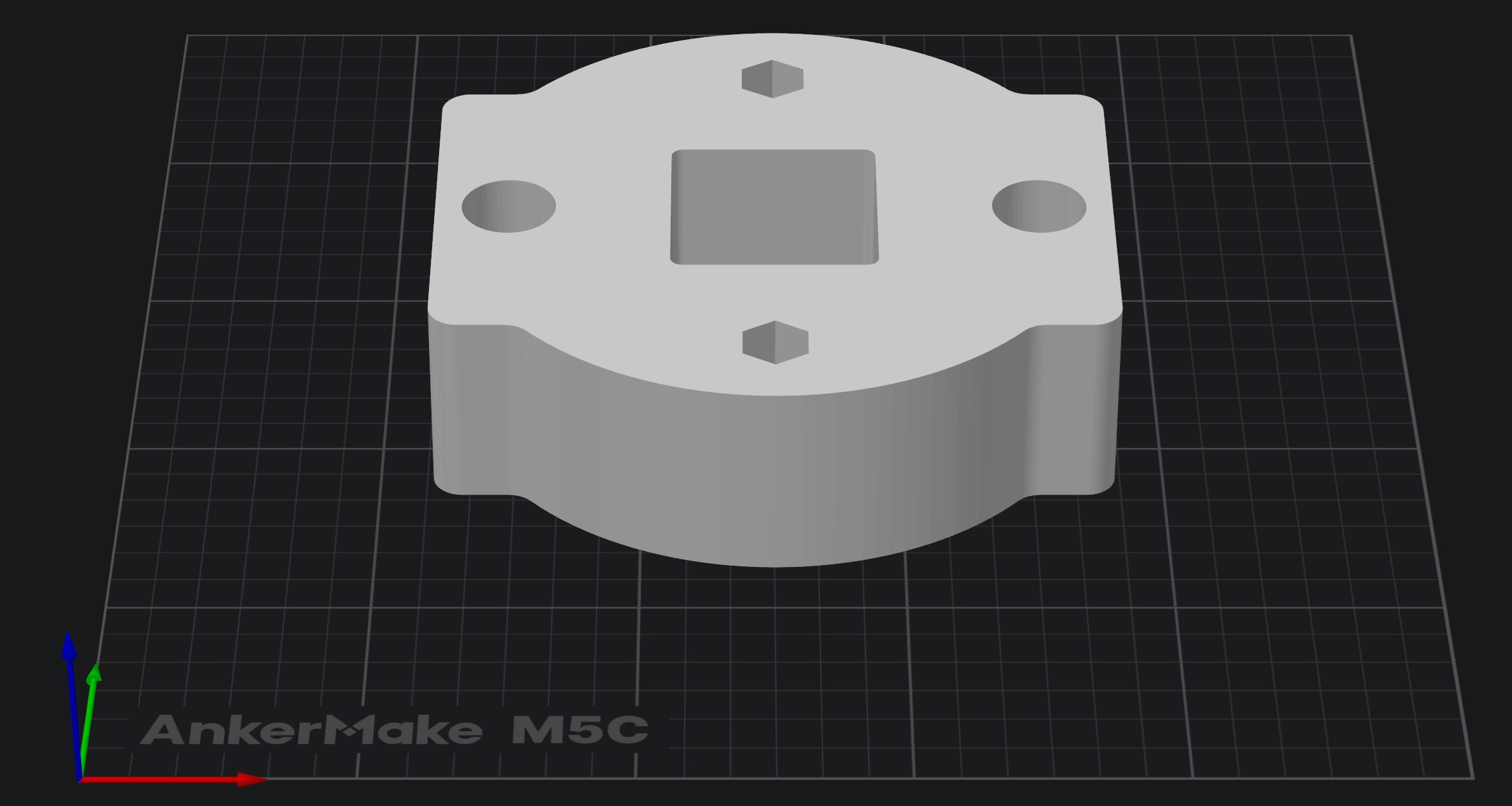

Tool Holder 1 | 1 |
 |

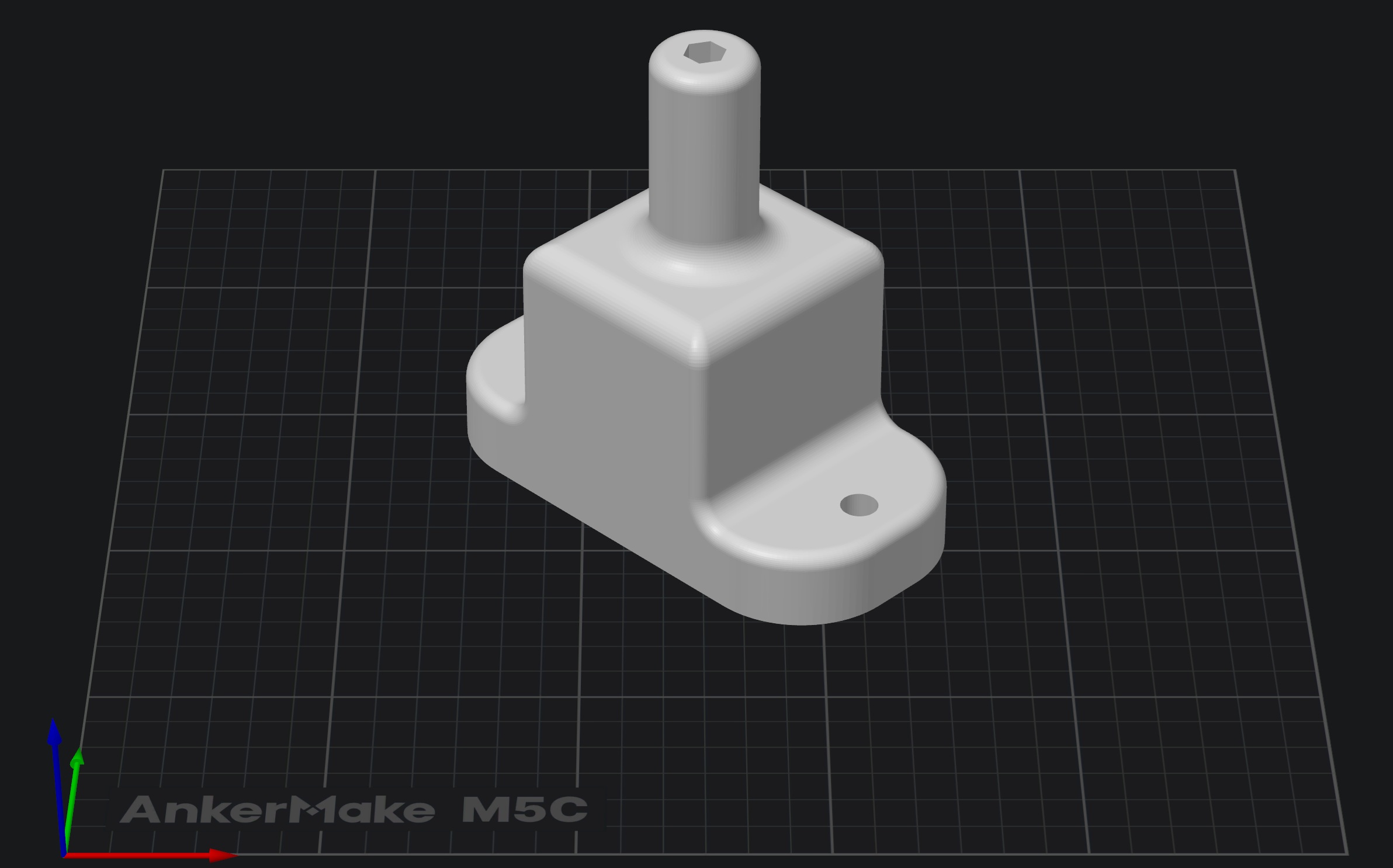

Tool Holder 2 | 1 |
 |

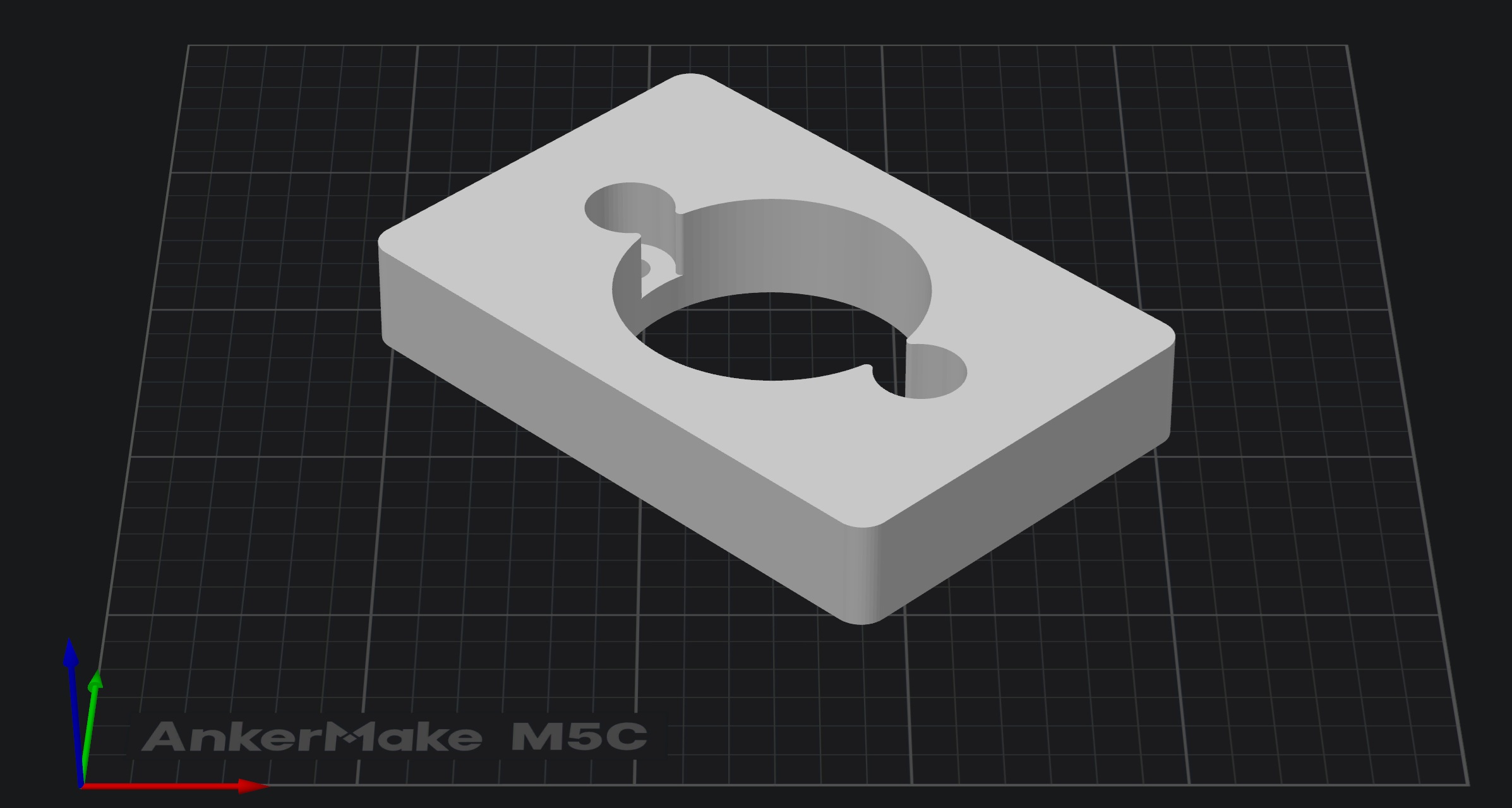

Tool Holder 3 | 1 |
Printer:
We use AnkerMaker M5C. But any FDM 3D printer will work.
Software:
I recommend Prusa MK3S+ with Prusa Slicer, choose the correct software based on your printer.
